GARR-04060

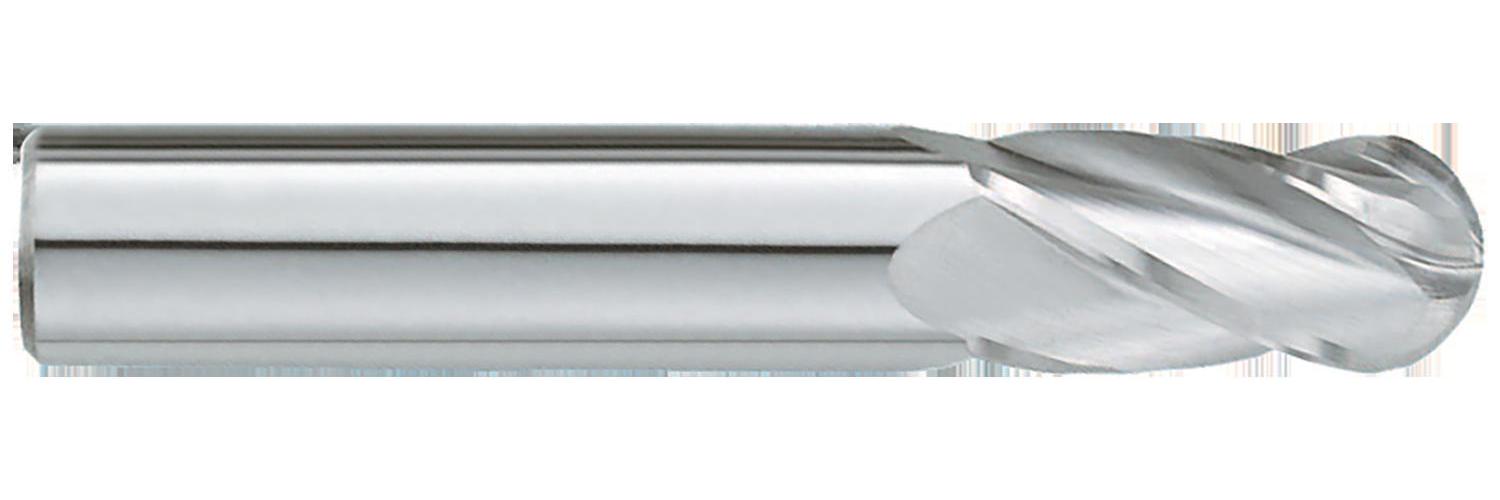

GARR 04060 190M Ball Nose Center Cutting Stub Length End Mill, 0.156 in Dia Cutter, 5/16 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2 in OAL

  • Manufacturer: Garr Tool Company
  • Brand Name: GARR
  • Part Number: GARR-04060
  • MPN: 04060
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

GARR End Mill, Ball Nose Center Cutting Stub Length, Series: 190M, 0.156 in Diameter Cutter, 2 in Overall Length, 5/16 in Length of Cut, 4 Flutes, Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide

Cutter Diameter      :      0.156 in
Cutting Direction      :      Right Hand
Flute Type      :      Spiral
Helix Angle      :      30 deg
Length of Cut      :      5/16 in
Material      :      Submicron Solid Carbide
Number of Flutes      :      4
Overall Length      :      2 in
Series      :      190M
Shank Diameter      :      3/16 in
Type      :      Ball Nose Center Cutting Stub Length
  • General Purpose
  • Stub Length - Ball End - 4 Flutes
  • Solid submicron grain carbide end mill - center cutting
  • Shorter flute length for rigidity
  • Extremely versatile
