OSG 36901511

EXOCARB® WXL® end mills are the new industry standard for hard milling. Everything about WXL is designed for rigidity and performance in wide variety of materials and a wide variety of milling applications. Substrates, geometry and proprietary WXL coating are all specifically tailored for non-ferrous materials, mild steels and steels up to 50 HRC.

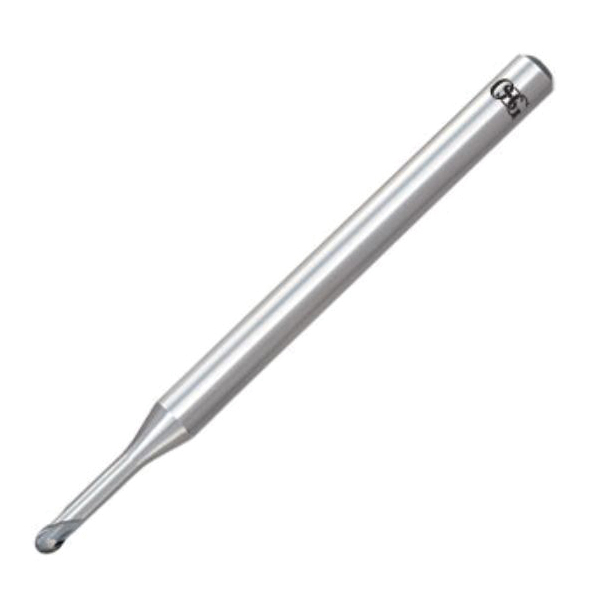

EXOCARB® LN-EBD Ball Nose End Mill, Center Cutting High Performance Long Neck Premium Regular Length Rib Processing Single End, Series: 3690, 3/16 in Cutter Dia, 3-1/2 in Overall Length, 3/16 in Length of Cut, 2 Flutes, Spiral Flute, 1/4 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Shrink Fit Shank, Micrograin Carbide, WXL®

• Ultra fine micrograin carbide the hardest most wear-resistant carbide possible for incredible wear resistance
• High precision geometry ball end mills have +/-5 um radius tolerance high accuracy all but eliminates need for benching and rework for mold makers
• High strength core diameter tools utilize thicker core diameters for the ultimate in strength and rigidity
• WXL coating - +1100 deg C oxidation temperature and +3100 Hv in hardness higher coating oxidation temperature and hardness dramatically improve wear resistance
