OSG 3051503

EXOCARB® WXS® end mills are the new industry standard for hard milling. Everything about WXS is designed for rigidity and performance in hardened steel 50 HRC and greater. Substrates, geometry and proprietary WXS coating are all specifically tailored for hardened steels like D2, A2, S7, H13 and CPM.

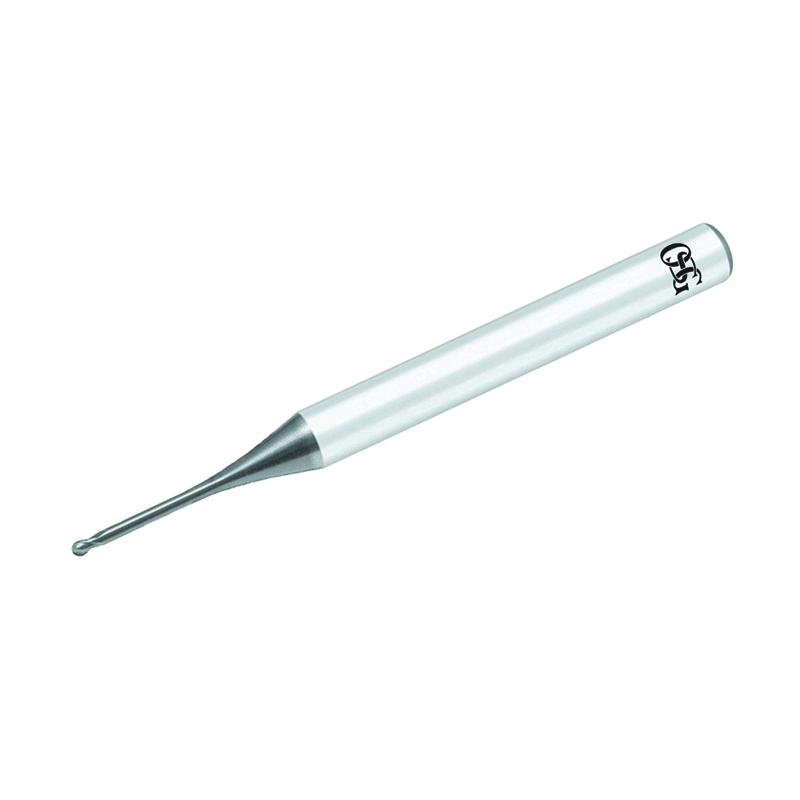

EXOCARB® LN-EBD Ball Nose End Mill, Center Cutting High Performance Long Neck Premium Rib Processing Single End Stub Length, Series: 4590, 1.5 mm Cutter Dia, 45 mm Overall Length, 1.2 mm Length of Cut, 2 Flutes, Spiral Flute, 4 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Shrink Fit Shank, Micrograin Carbide, TiAlN

• Ultra fine micrograin carbide the hardest most wear-resistant carbide possible for incredible wear resistance
• High precision geometry all corner radius and ball mills have +/-5 um radius tolerance high accuracy all but eliminates need for benching and rework for mold makers
• High strength core diameter tools utilize thicker core diameters for the ultimate in strength and rigidity
• WXS coating - +1300 deg C oxidation temperature and +3500 Hv in hardness higher coating oxidation temperature and hardness dramatically improve wear resistance

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EXOCARB_WXS_3051214_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EXOCARB_WXS_3051214_Catalog.pdf
