Dynabrade® 52436 DYB-52436
  1. pin-int

DYB-52436

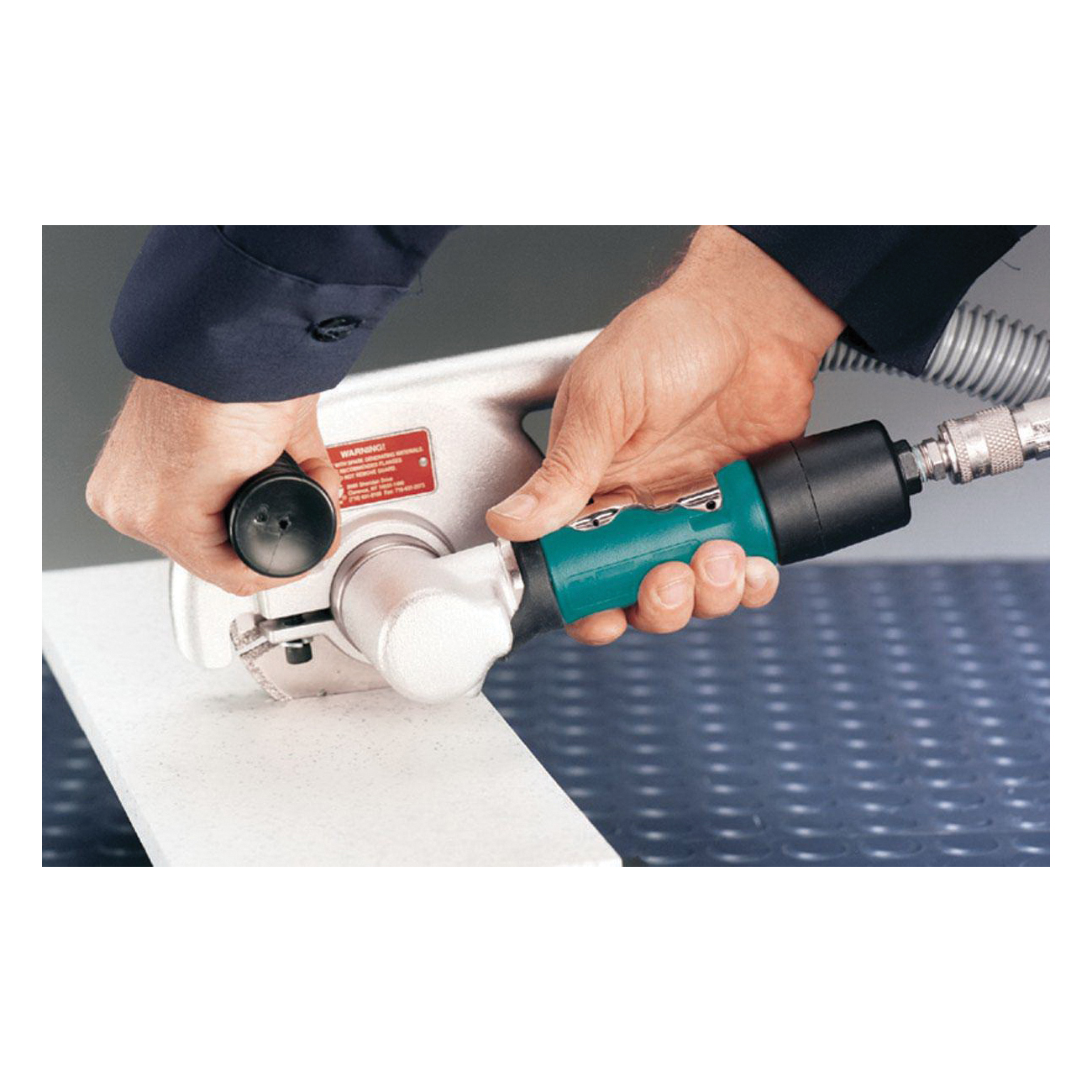

Dynabrade® 52436 Vacuum Cut-Off Wheel Tool, 4-1/2 in Dia Wheel, 20000 rpm Speed, 32 cfm Air Flow, 90 psi

  • Manufacturer: Dynabrade
  • Brand Name: Dynabrade®
  • Part Number: DYB-52436
  • MPN: 52436
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Dynabrade® Cut-Off Wheel Tool, Vacuum, Tool/Kit: Bare Tool, 4-1/2 in Wheel Dia, 3/8-24 Male, 20000 rpm, 32 cfm, 90 psi Air, 1/4 in NPT Air Inlet, Rear Load Exhaust Location, 7 deg Offset, 92 dB, 7-3/8 in L x 5-1/4 in H

Air Flow Rate      :      32 cfm
Air Inlet      :      1/4 in NPT
Air Pressure      :      90 psi
Arbor/Shank Size      :      3/8-24 Male
Dimensions      :      7-3/8 in L x 5-1/4 in H
Exhaust Location      :      Rear Load
Handle Type      :      7 deg Offset
Sound Level      :      92 dB
Speed      :      20000 rpm
Tool/Kit      :      Bare Tool
Type      :      Vacuum
Wheel Diameter      :      4-1/2 in
  • Vacuum cut-off wheel tool, for efficient cutting with dust and debris removal
  • Ideal for use with optional 94912 diamond cut-off wheel (4-1/2 in Dia)
  • Diamond cut-off wheels are slotted for cooler running and longer life
  • Adjustable wheel guard has vacuum port (1 in OD) that diverts airborne dust and debris to optional vacuum source
  • 1-3/16 in of blade depth exposure
  • Tool includes cushioned, soft-grip side handle
  • Handle is offset 7 deg for greater operator comfort and control
  • Blade depth exposure of 1-3/16 in
  • Tool includes cushioned soft grip side handle
  • 0.7 hp motor speed
  • 3/8 in Dia hose inside
  • 3/8-24 male spindle thread
