Dynabrade® 52052 DYB-52052
  1. pin-int

DYB-52052

Dynabrade® Dyninger® 52052 Planetary Geared Straight Line Abrasive Finishing Tool, 3/4 to 4 in Pad, 0.4 hp, 22 scfm Air Flow, 90 psi

  • Manufacturer: Dynabrade
  • Brand Name: Dynabrade®
  • Part Number: DYB-52052
  • MPN: 52052
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Dynabrade® Dyninger® Abrasive Finishing Tool, Planetary Geared Straight Line, Tool/Kit: Bare Tool, 3/4 to 4 in Pad, 0 to 3200 rpm, 0.4 hp, 22 scfm, 90 psi Air, 1/4 in NPT Air Inlet, Rear Load Exhaust Location, Lever Throttle, 1/4 in Minimum Hose Size, Composite Housing, 79 dB, 8-3/4 in L x 1-5/8 in H

Air Flow Rate      :      22 scfm
Air Inlet      :      1/4 in NPT
Air Pressure      :      90 psi
Dimensions      :      8-3/4 in L x 1-5/8 in H
Exhaust Location      :      Rear Load
Horsepower      :      0.4 hp
Housing Material      :      Composite
Minimum Hose Size      :      1/4 in
Pad Size      :      3/4 to 4 in
Sound Level      :      79 dB
Speed      :      0 to 3200 rpm
Throttle Style      :      Lever
Tool/Kit      :      Bare Tool
Type      :      Planetary Geared Straight Line
  • Lightweight Dyninger® air-powered abrasive finishing tool, for use with spindle-mount, arbor-mount and eyelet sanding stars

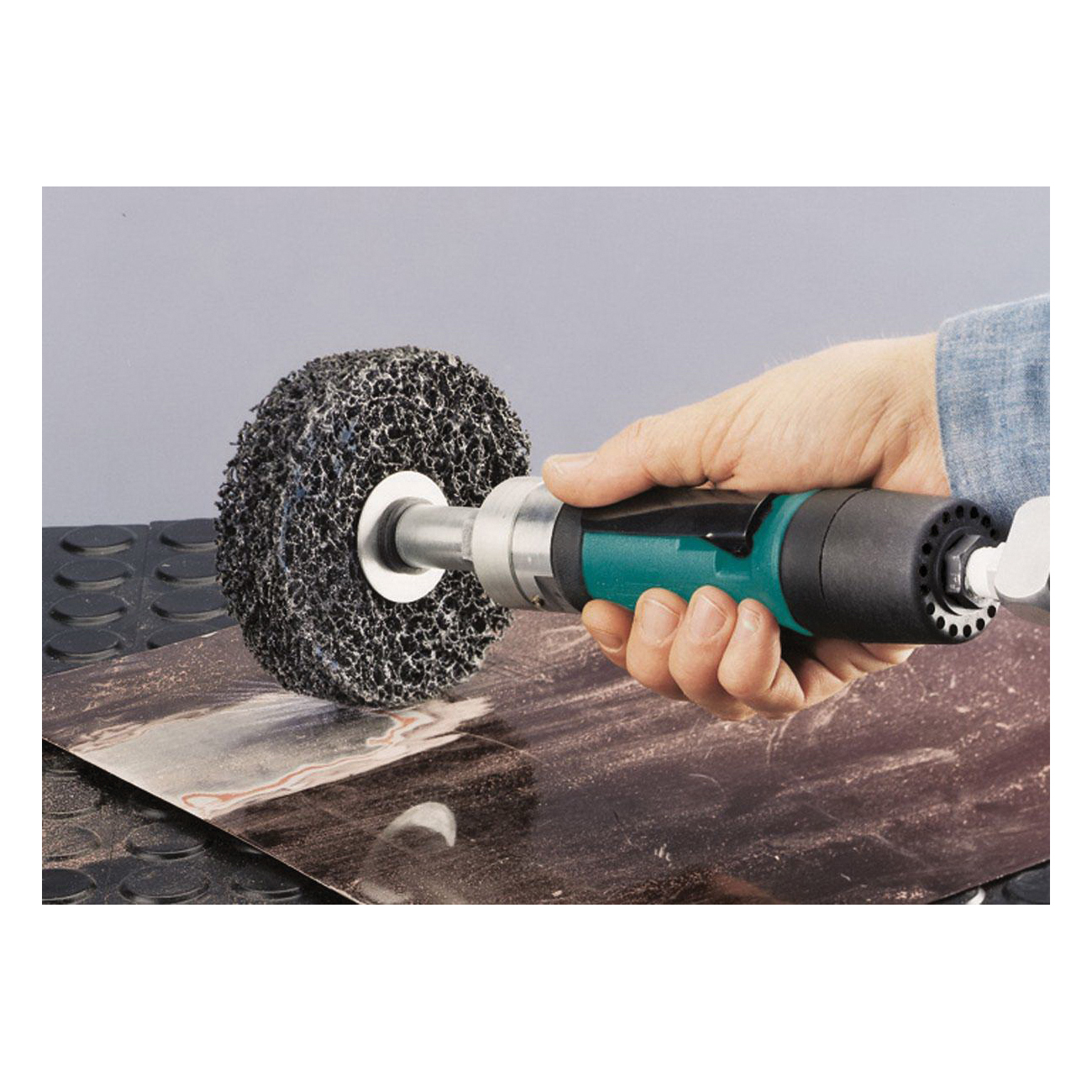

  • For running arbor-mount abrasive stars or Dynacushion® wheel
  • Includes 12980 arbor 1/2 in Dia for mounting up to five 4 in Dia arbor-mount sanding stars (1/2 in center hole)
  • Arbor includes spacers to be used between the stars for added flexibility
  • Stars sold separately

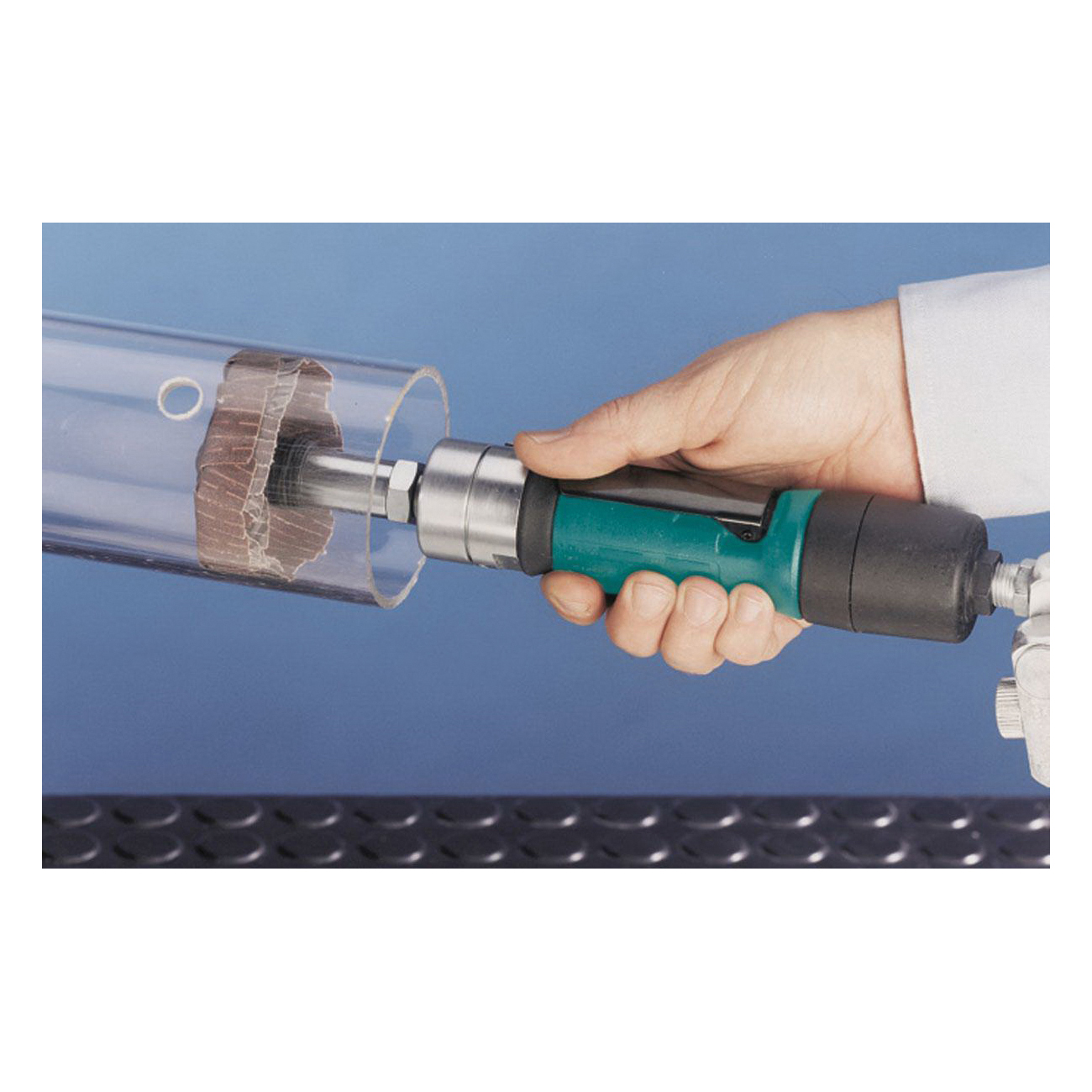

  • For whitewood/sealer sanding, light deburring of metal or fabrication and finishing of composite surfaces

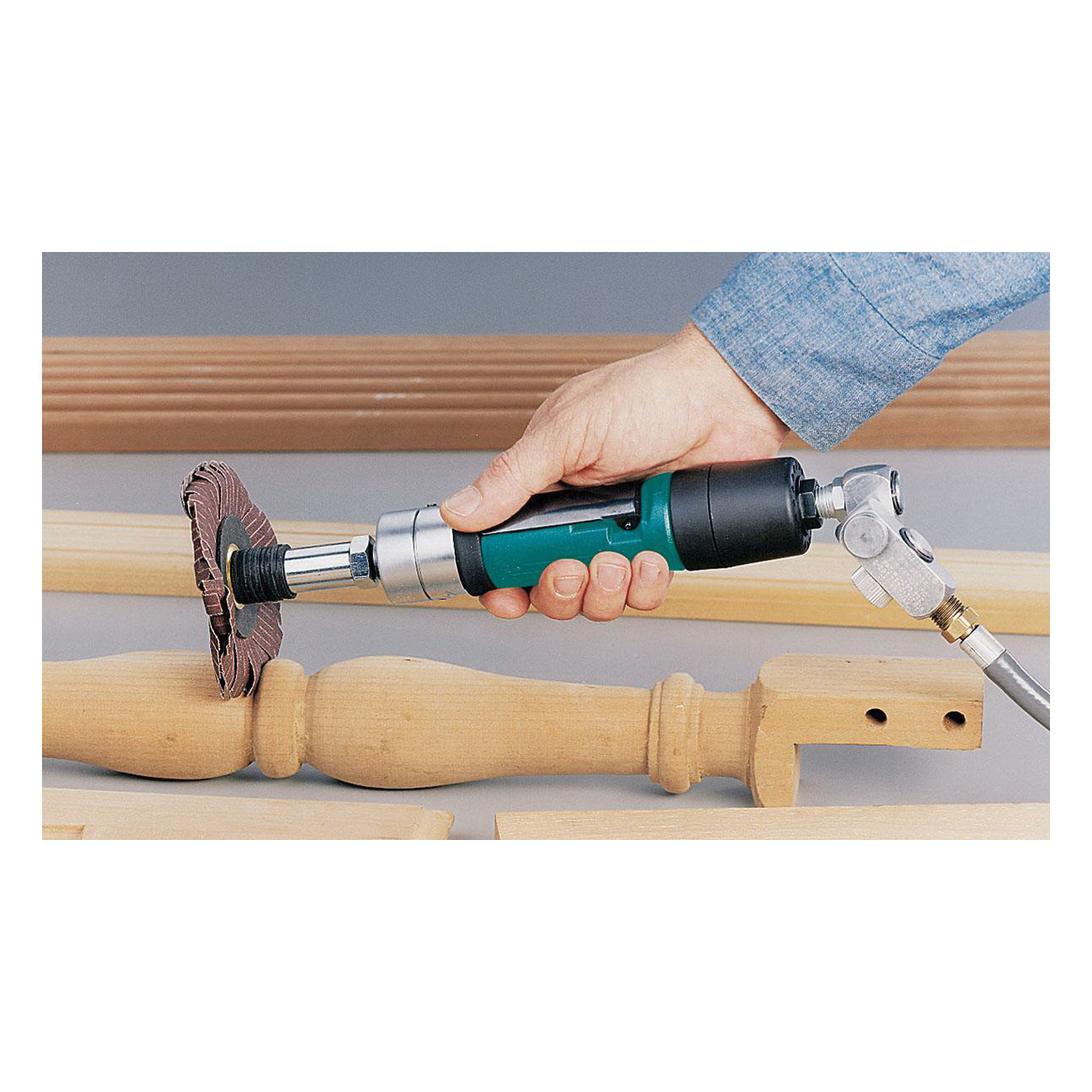

  • Excellent for use on wooden parts, moldings, raised panels and intricate profiles
  • Eliminates raised grain and removes loose fibers when whitewood sanding as well as scuffing sealer coats
  • Tool includes 94407 air-flow control Dynaswivel® fitting for maximum tool maneuverability and control
  • Mount 6mm collect size and 4 in diameter spindle-mount abrasive sanding stars with 1/4 in shank or eyelet dy-cut sanding stars
  • 3/8-24 male spindle thread
  • Ideal for use with spindle-mount, arbor-mount and eyelet sanding star
  • 1/2 in Dia arbor
