Dynabrade® 50210 DYB-50210
  1. pin-int

DYB-50210

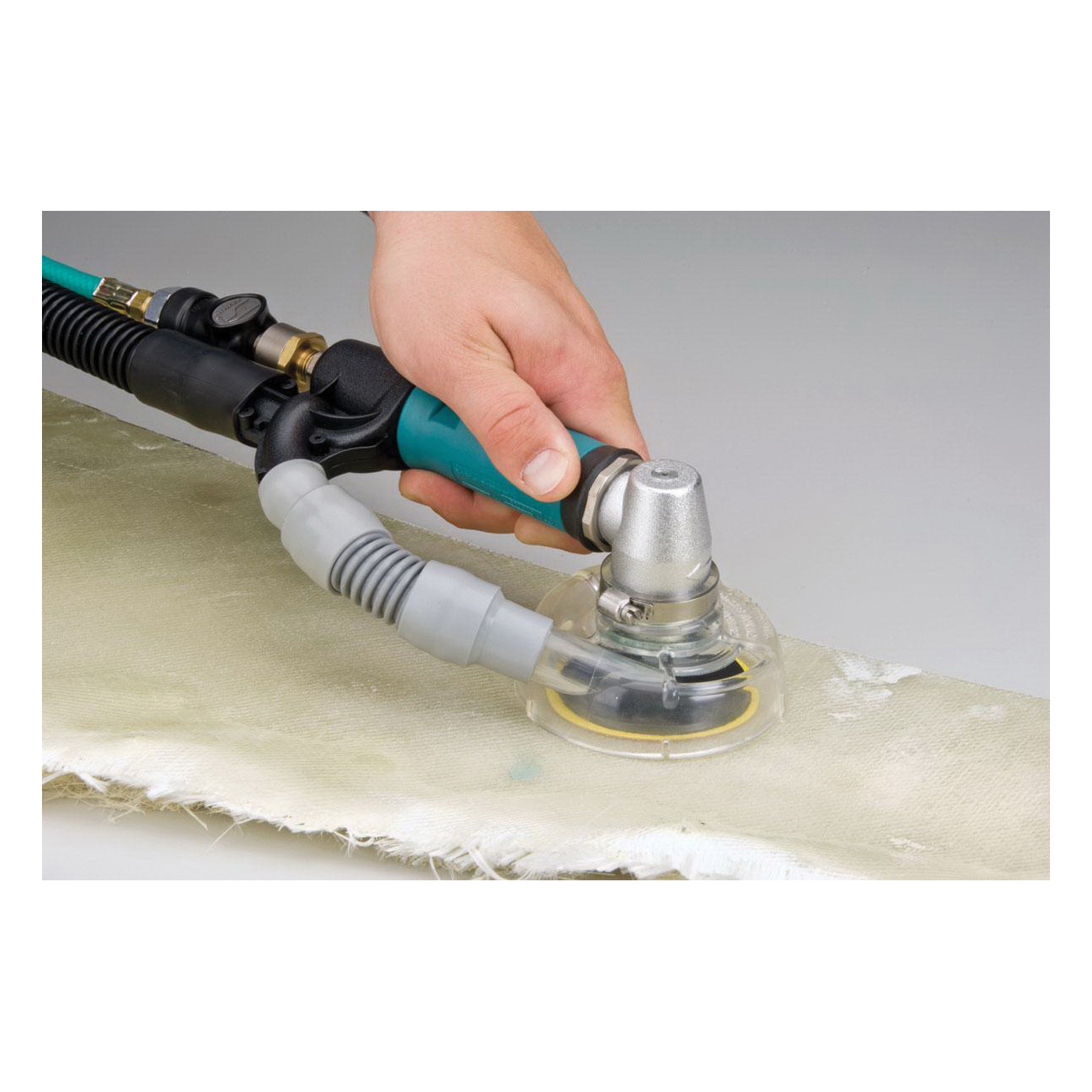

Dynabrade® 50210 Self-Generated Vacuum Disc Sander, 3 in Dia Disc, 1/4-20 Male Arbor/Shank, 0.4 hp, 21 scfm Air Flow, 90 psi

  • Manufacturer: Dynabrade
  • Brand Name: Dynabrade®
  • Part Number: DYB-50210
  • MPN: 50210
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Dynabrade® Disc Sander, Self-Generated Vacuum, Tool/Kit: Bare Tool, 3 in Disc Dia, 1/4-20 Male, 15000 rpm, 0.4 hp, 21 scfm, 90 psi Air, 1/4 in NPT Air Inlet, Rear Exhaust Location, 1/4 in Minimum Hose Size, Right Angle, 86 dBA, 9-3/4 in L x 3-7/8 in H

Air Flow Rate      :      21 scfm
Air Inlet      :      1/4 in NPT
Air Pressure      :      90 psi
Arbor/Shank Size      :      1/4-20 Male
Dimensions      :      9-3/4 in L x 3-7/8 in H
Disc Diameter      :      3 in
Exhaust Location      :      Rear
Free Speed      :      15000 rpm
Handle Type      :      Right Angle
Horsepower      :      0.4 hp
Minimum Hose Size      :      1/4 in
Sound Level      :      86 dBA
Tool/Kit      :      Bare Tool
Type      :      Self-Generated Vacuum
  • Powerful 0.4 hp (298 W) air motor for smooth, controlled sanding
  • Unique vacuum shroud diverts dust and debris to vacuum source
  • For use with 3 in (76 mm) Dia locking-type abrasive discs
  • Dynabrade® vacuum disc sander powers 3 in (76 mm) Dia abrasive discs, for efficient material removal on non-ferrous surfaces such as carbon fiber, fiberglass, painted aluminum and more
  • This is an essential tool for aerospace, automotive, marine and transportation industries
  • As tool is sanding, flexible vacuum shroud captures dust, debris and contaminants (including Hexavalent Chromium) to vacuum source - ensuring cleaner, safer workplace
  • Trimmed shroud height of 1 in (25 mm) accommodates 3 in (76 mm) Dia locking-type abrasive discs (sold separately)
  • Vacuum shroud constructed of high-quality clear urethane
  • Unique view -port allows operator to see edge of sanding disc and offers optimum view of work surface
  • Flexible, non-marring vacuum shroud allows capture of dust, debris and contaminants (including hexavalent chromium)
  • Vacuum shroud angle of 6 deg ensures ideal surface contact for maximum debris extraction
  • Wick-lube system extends gear life with simple lubrication
  • Locking-type female pad
  • Each model includes 51346 backing pad, for 3 in (76 mm) Dia locking type abrasive discs
  • Utilizes tool's exhaust to create strong vacuum suction
  • 1 in (25 mm) Dia vacuum port ready for connection to optional portable self-contained dust collection system
