Dynabrade® 15003 DYB-15003
  1. pin-int

DYB-15003

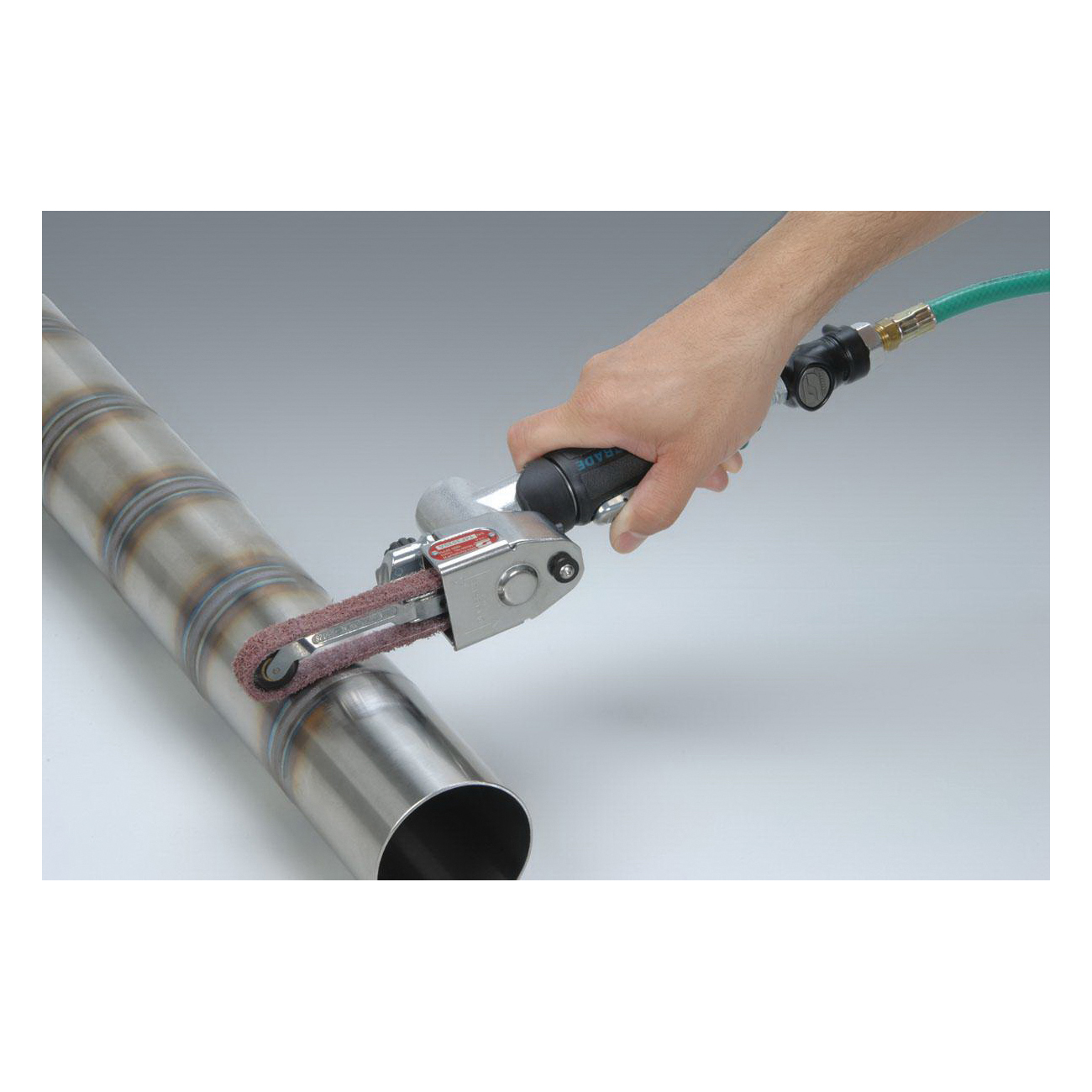

Dynabrade® Mini-Dynafile® II 15003 Abrasive Belt Tool, 1/8 to 1/2 in W x 12 in L, 0.4 hp, 20 scfm Air Flow, 90 psi

  • Manufacturer: Dynabrade
  • Brand Name: Dynabrade®
  • Part Number: DYB-15003
  • MPN: 15003
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Dynabrade® Mini-Dynafile® II Abrasive Belt Tool, Tool/Kit: Bare Tool, 12 in Belt Length, 1/8 to 1/2 in Belt Width, 25000 rpm, 0.4 hp, 20 scfm, 90 psi Air, 1/4 in NPT Air Inlet, Rear Exhaust Location, 1/4 in ID Minimum Hose Size, 7 deg Offset, 80 dBA, 11-3/4 in L x 3-1/2 in H

Air Flow Rate      :      20 scfm
Air Inlet      :      1/4 in NPT
Air Pressure      :      90 psi
Belt Length      :      12 in
Belt Width      :      1/8 to 1/2 in
Dimensions      :      11-3/4 in L x 3-1/2 in H
Exhaust Location      :      Rear
Handle Type      :      7 deg Offset
Horsepower      :      0.4 hp
Minimum Hose Size      :      1/4 in ID
Sound Level      :      80 dBA
Speed      :      25000 rpm
Tool/Kit      :      Bare Tool
  • Ideal for strap polishing and working in narrow openings
  • Lightweight ergonomic design handle features 7 deg offset
  • Multi-position grinding head pivots 360 deg
  • Belt guard easily detaches for quick abrasive change, simple belt tracking adjustment knob
  • For added versatility, tool can be easily converted to die grinder with optional 01644 (1/4 in) threaded collet insert
  • 40378 rubber drive wheel may be ordered separately, for efficient use with optional non-woven nylon belts
