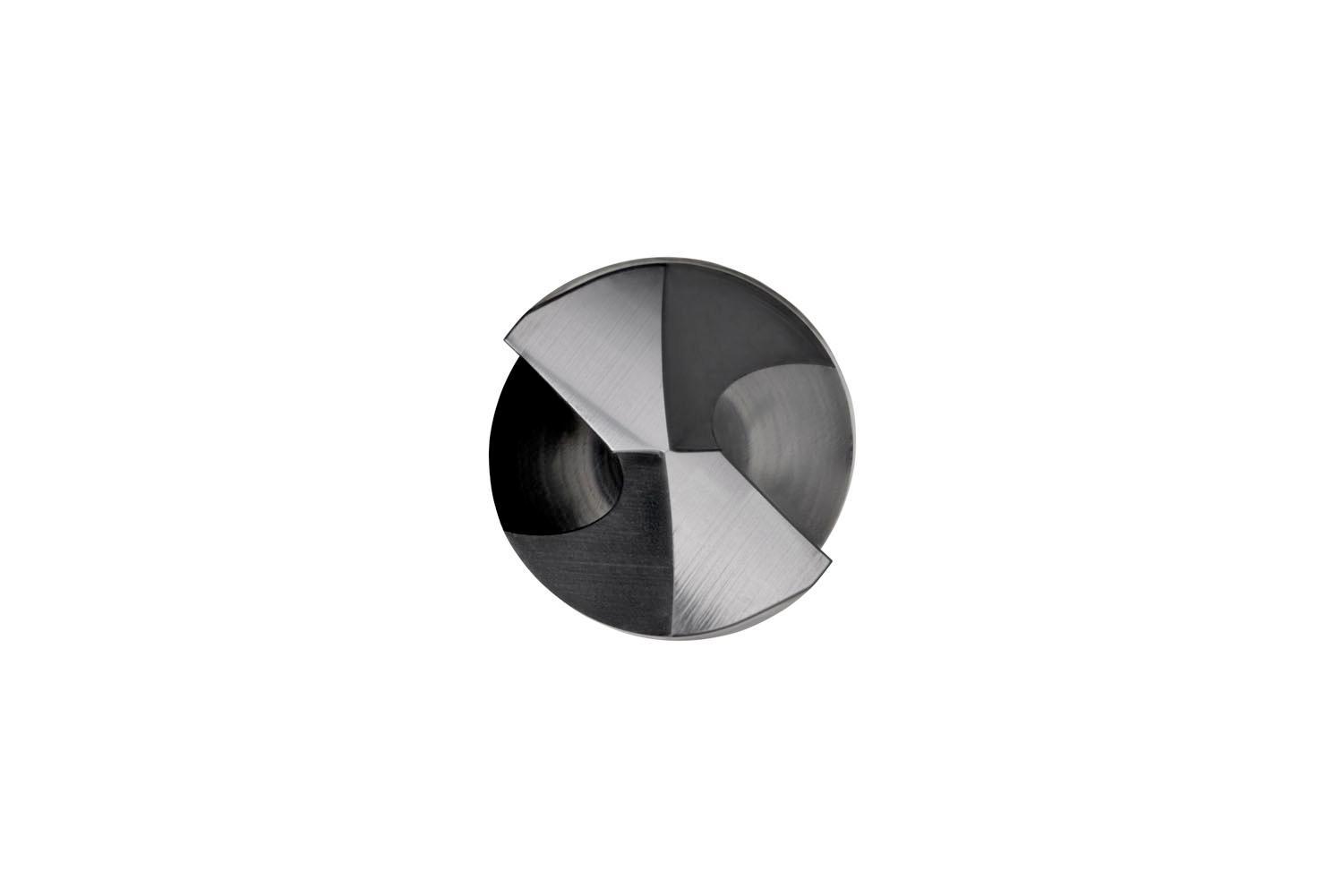

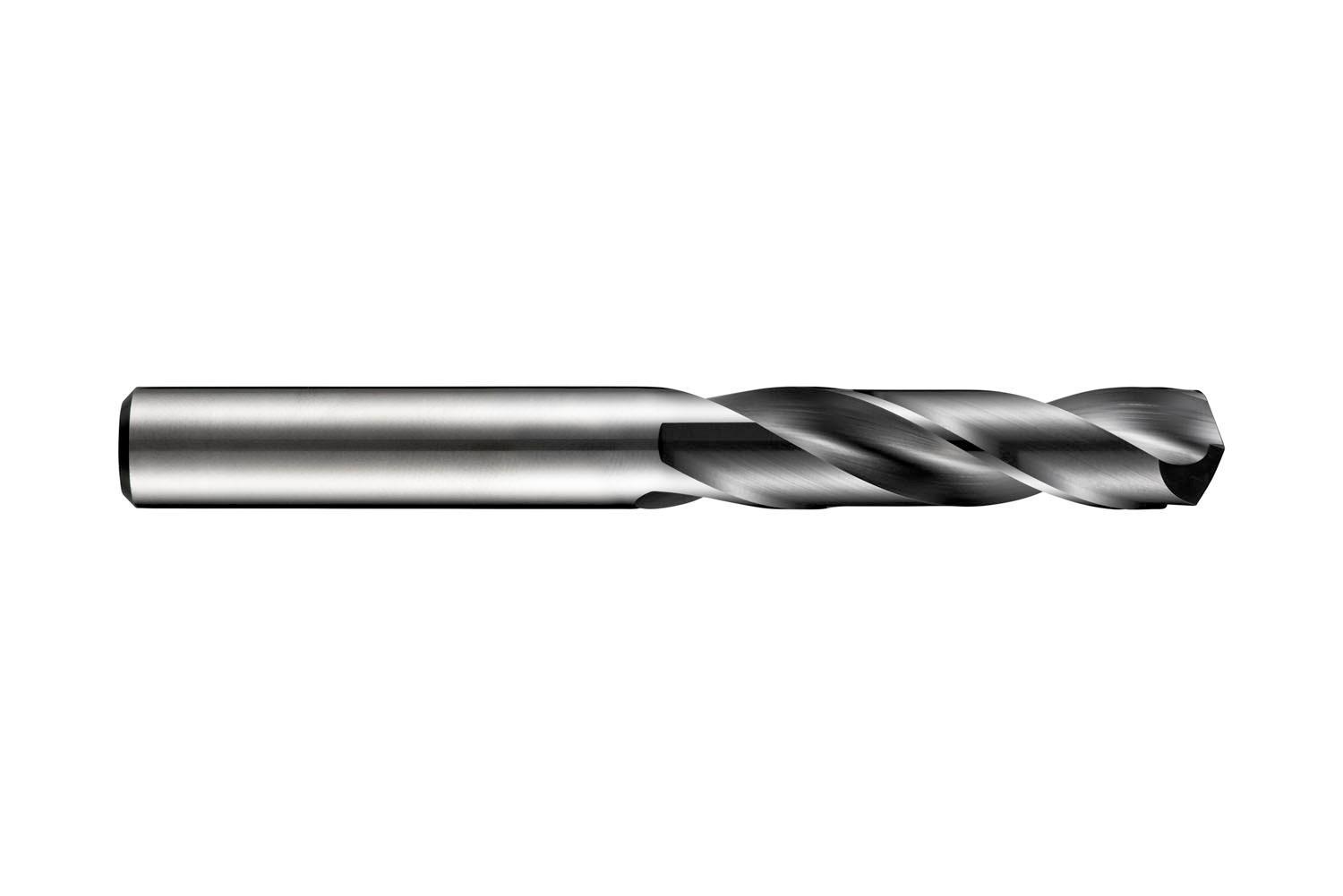

Dormer 5980221 R458 Multi-Application Short Length Drill Bit, #29 Drill - Wire, 0.136 in Drill - Decimal Inch, Carbide, TiAlN
- Manufacturer: Dormer Pramet
- Brand Name: Dormer
- Part Number: PD 0042274
- MPN: 5980221
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 1/PK
-
Price:
Dormer Short Length Drill Bit, Multi-Application, Series: R458, Imperial, #29 Drill - Wire, 0.136 in Drill - Decimal Inch, 62 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 20 mm Flute Length, 6 mm Shank, Straight Shank, 140 deg Point, MP-X/Self Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Carbide, TiAlN, Black Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed and Aluminum Alloyed
| Applicable Materials | : | Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed and Aluminum Alloyed |
| Color | : | Black Gray |
| Cutting Depth | : | 3XD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | Carbide |
| Drill Diameter Measurement System | : | Imperial |
| Drill Size - Decimal Inch | : | 0.136 in |
| Drill Size - Wire | : | #29 |
| Finish | : | TiAlN |

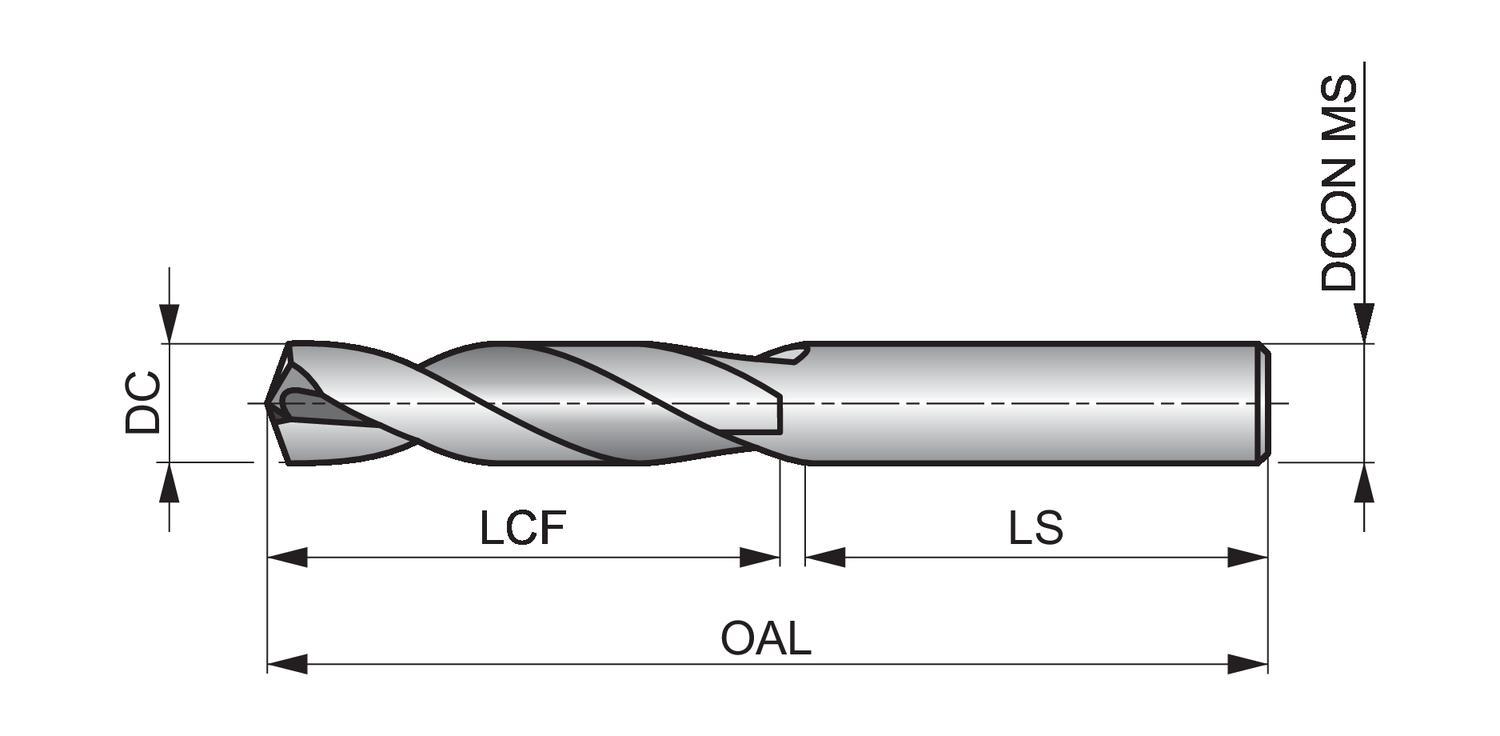

| Flute Length | : | 20 mm |
| Flute Type | : | Spiral |
| Material | : | Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 62 mm |
| Point Angle | : | 140 deg |
| Point Type | : | MP-X/Self Centering/Split |
| Series | : | R458 |
| Shank Size | : | 6 mm |
| Shank Type | : | Straight |
| Type | : | Multi-Application |
- Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materials
- Coolant channels through the tool provide effective coolant delivery, reducing the temperature in the cutting zone and assisting chip evacuation, enabeling incresaed tool life at accelerated cutting data
- Self-centering 4-facet split point and CTW flute construction for enhanced penetration rate
