PD 0134436

Dormer Pramet’s force X program is a new range of versatile solid carbide drills designed to provide an excellent level of performance with outstanding economy. Consistent performance and repeatability in multiple applications across diverse machines and conditions. The family offers ranges of TiAlN coated drills available in 3D and 5D lengths in both solid and coolant feed variants and an 8D version with coolant feed. Their design enables them to deliver high performance across a wide variety of materials, making them the ideal choice for general engineering and sub-contract environments

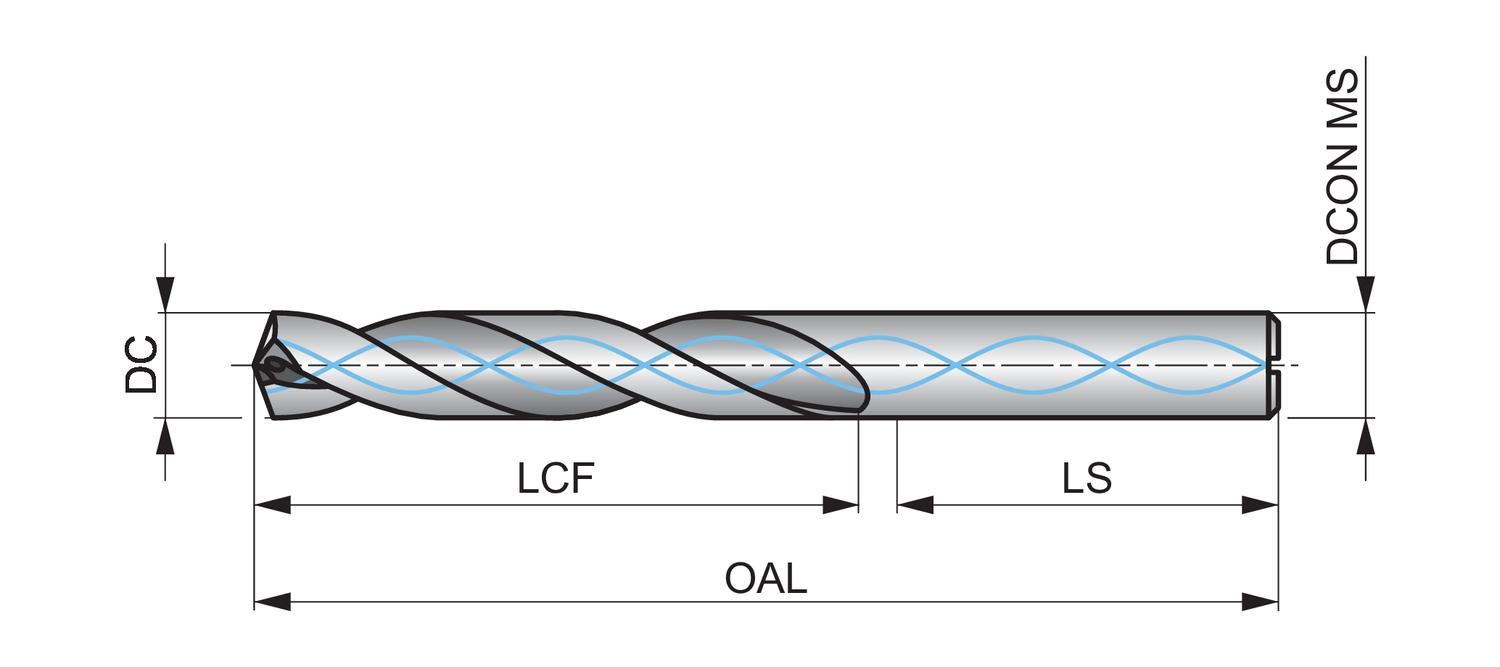

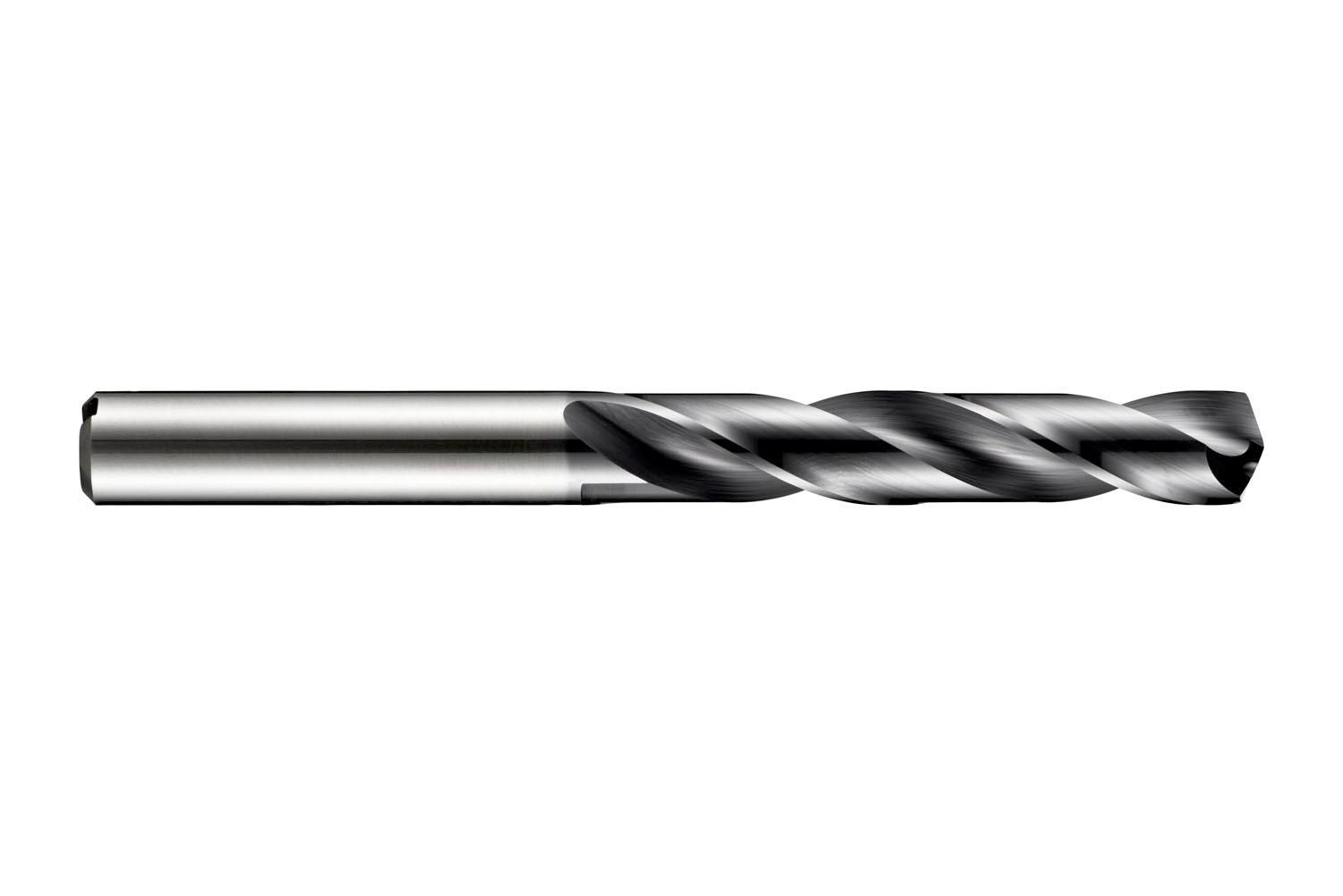

Dormer Jobber Length Drill Bit, Multi-Application Standard Length, Series: Force X R453, Metric/Imperial, 17.8 mm Drill - Metric, 0.7007 in Drill - Decimal Inch, 143 mm Overall Length, 5XD Cutting Depth, 2 Flutes, CTW Flute, 91 mm Flute Length, 18 mm Dia x 48 mm L Shank, Straight Shank, 140 deg Point, 4-Facet/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Yes Through Coolant, Carbide, TiAlN, Black/Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/ Hardened and Tempered Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened Stainless Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Copper, Brass, Bronze, High Strength Bronze, Unalloyed Aluminum Magnesium and Alloyed Aluminum

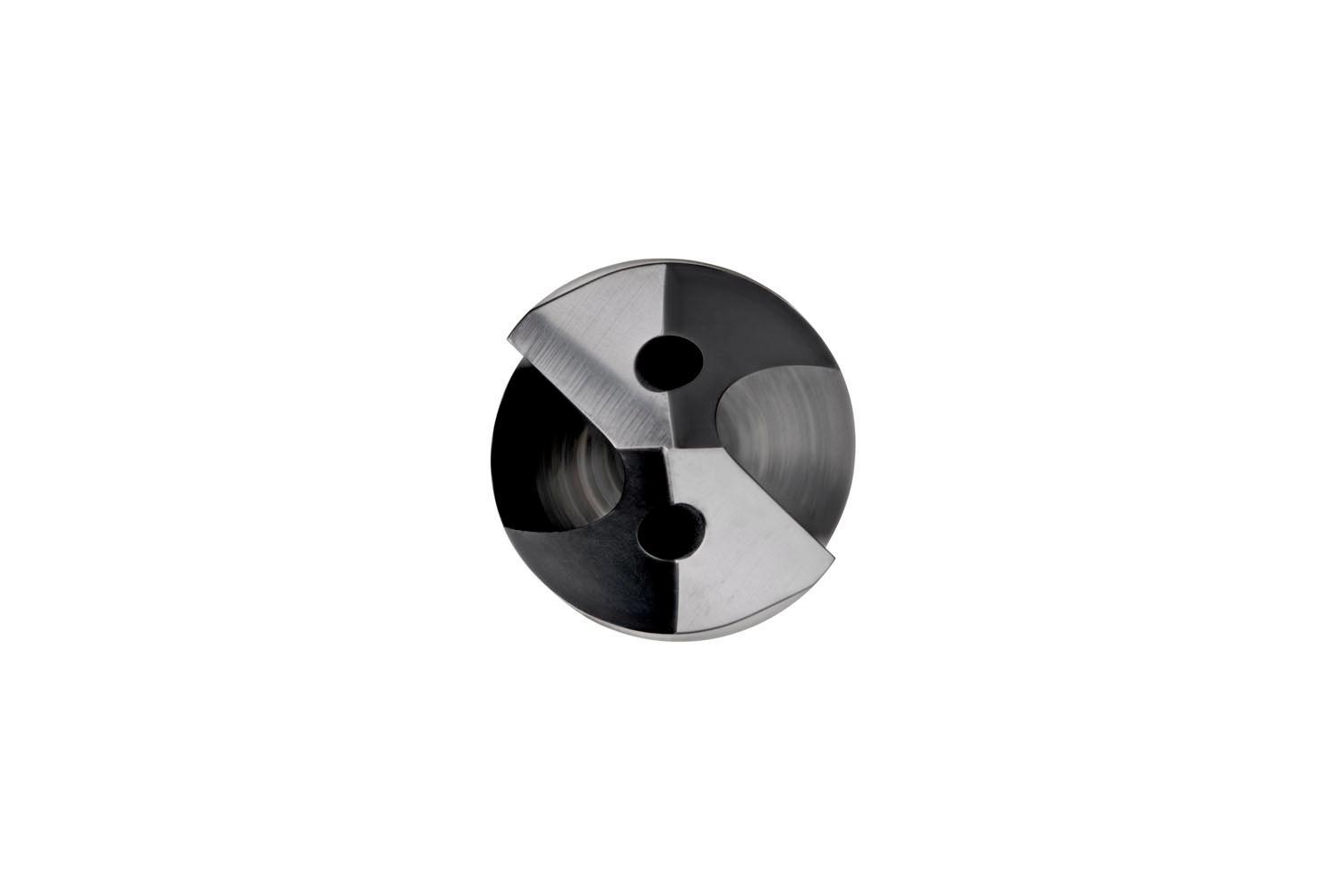

• Self-centering 4-facet split point and CTW flute construction for enhanced penetration rate
• TiAlN coating increases surface hardness, improves tool life at high RPM
• Coolant through clears chips away from the cutting edge
• High productivity in a wide range of materials
