Dixon® ABN100F DIXV-ABN100F
  1. pin-int

DIXV-ABN100F

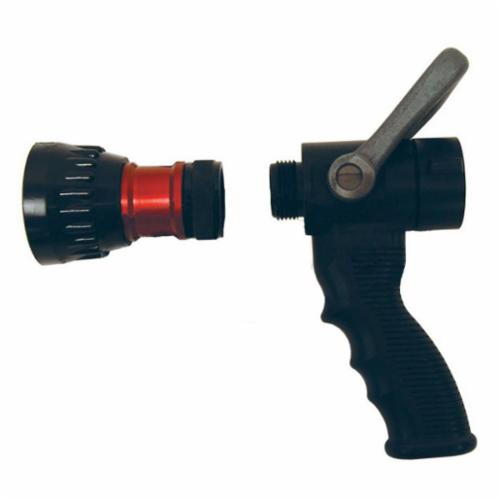

Dixon® ABN100F Break Apart Attack Nozzle, 1 in Inlet, Aluminum Body, For Use With 1-1/2 in Coupler

  • Manufacturer: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • Part Number: DIXV-ABN100F
  • MPN: ABN100F
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Dixon® Attack Nozzle, Break Apart, 1 in Inlet, Aluminum Body, For Use With: 1-1/2 in Coupler, FNST (NH) Thread, 100 psi Maximum, 20 to 90 gpm Flow Rate, Spray Pattern: Fog Straight Stream

Body Material      :      Aluminum
Flow Rate      :      20 to 90 gpm
Inlet Size      :      1 in
Maximum Pressure      :      100 psi
Spray Pattern      :      Fog Straight Stream
Suitable For Use With      :      1-1/2 in Coupler
Thread Type      :      FNST (NH)
Type      :      Break Apart
  • Designed as a low cost, versatile, and easy to use nozzle for first responders in rural and suburban fire departments
  • Minimal training is required to connect and operate the nozzle
  • Can be separated from the shut-off valve for extended hose lays and other users
