DEW PFM1411420
DeWALT® Screw-Bolt+™ PFM1411420 Heavy Duty Screw Anchor, 1/2 in Dia, 4 in OAL, Hex Washer Head Drive, Carbon Steel, 1-3/4 in D Min Embedment
- Manufacturer: Stanley Black & Decker
- Brand Name: DeWALT®
- Part Number: DEW PFM1411420
- MPN: PFM1411420
- UPC: 075352305042
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 50/BX
-
Price:
The Screw-Bolt+™ anchor is a one-piece, heavy duty Screw Anchor with a finished hex head or flat head (countersunk). It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+™ is available as bright zinc-plated or mechanically galvanized plating. Suitable base materials include normal-weight concrete.
DeWALT® Screw-Bolt+™ Screw Anchor, Heavy Duty, 1/2 in Diameter, 4 in Overall Length, Hex Washer Head Drive, Carbon Steel, 1-3/4 in Minimum Embedment Depth, Zinc Plated, Applicable Materials: Normal Weight Concrete, Lightweight Concrete, Concrete Over Steel Deck, Grouted Concrete Masonry and Brick Masonry, 31/64 in H Head, 2-1/4 in Maximum Work Thickness, 10705 lb Shear Strength, 4400 lb Tensile Strength
| Applicable Materials | : | Normal Weight Concrete, Lightweight Concrete, Concrete Over Steel Deck, Grouted Concrete Masonry and Brick Masonry |
| Diameter | : | 1/2 in |
| Finish | : | Zinc Plated |
| Head Drive Type | : | Hex Washer |
| Head Size | : | 31/64 in H |
| Material | : | Carbon Steel |
| Maximum Work Thickness | : | 2-1/4 in |
| Minimum Embedment Depth | : | 1-3/4 in |
| Overall Length | : | 4 in |
| Shear Strength | : | 10705 lb |
| Tensile Strength | : | 4400 lb |
| Type | : | Heavy Duty |
- Patented thread design offers low installation torque
- Low installation torque in concrete and masonry
- Ratchet teeth on underside of hex washer head lock against the fixture
- Fully removable and reinstallable in same hole

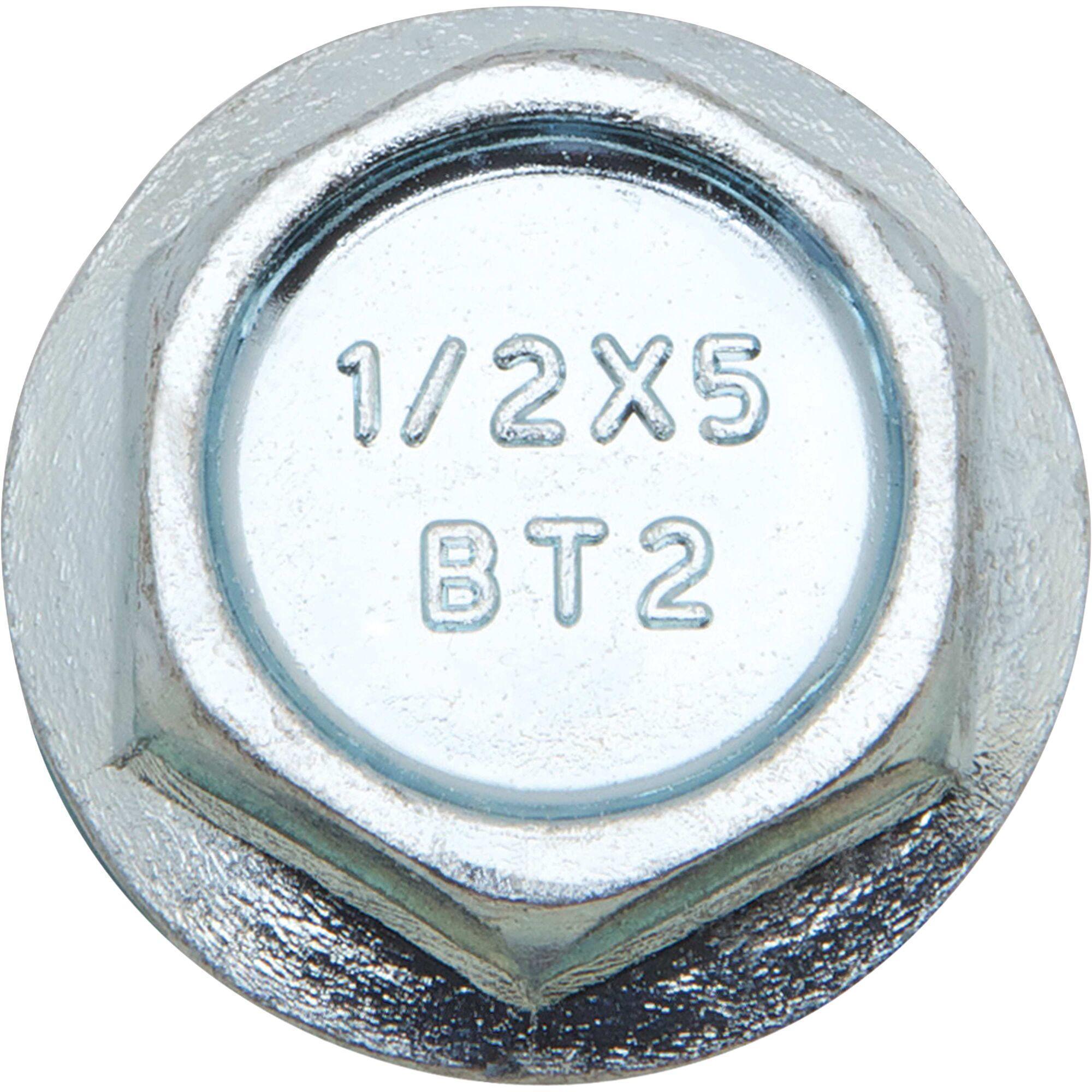

- Diameter, length and identifying marking stamped on head of each anchor
- Patented thread design offers toughened threads for tapping high strength concrete
- Universal product for concrete and grouted/solid masonry
- Can be installed closer to a free-edge than traditional expansion anchors

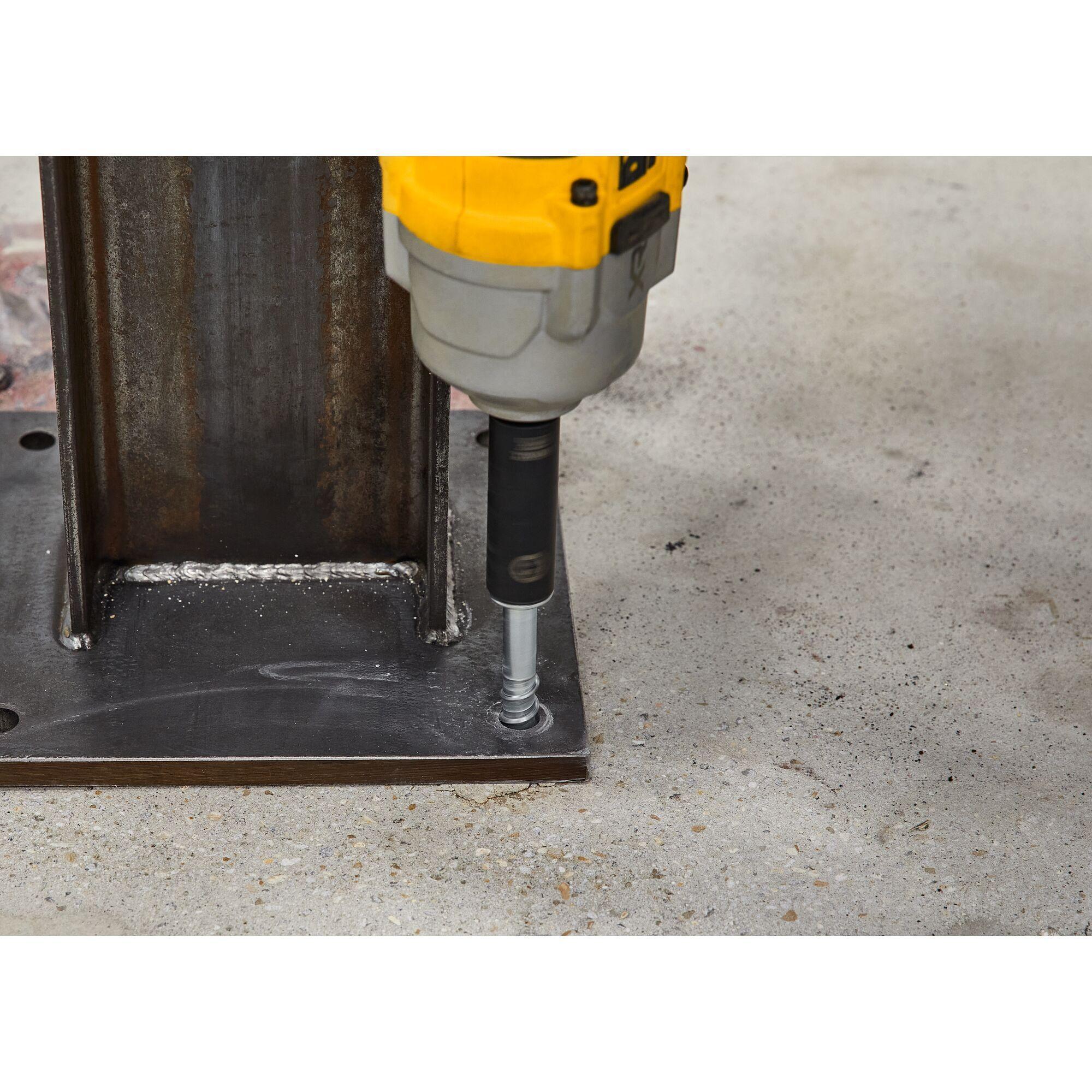

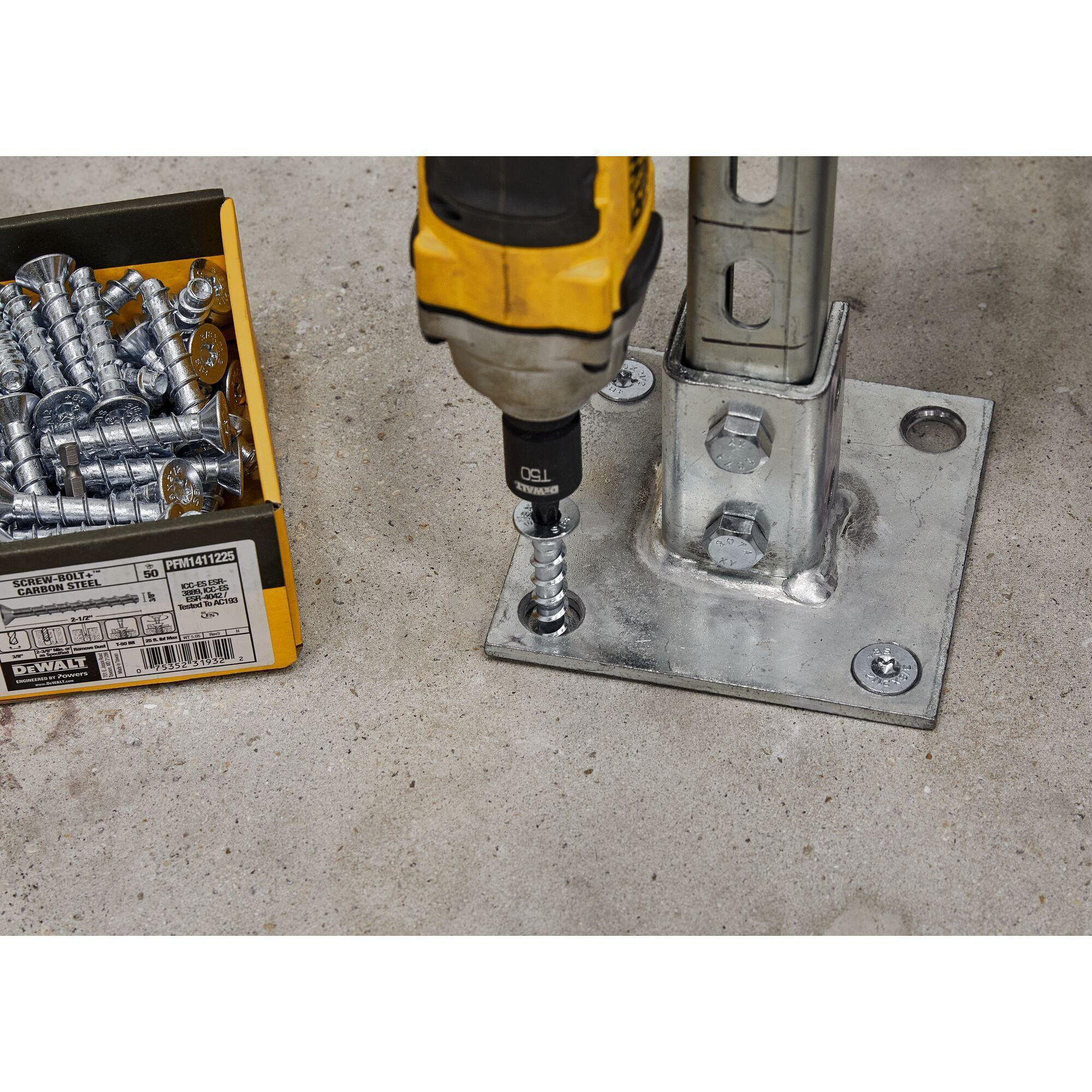

- Fast installation with powered impact wrench, but can also be installed manually
- One-piece, finished head design
- Quickly changes between 6 drivers to increase speed
