The Screw-Bolt+™ anchor is a one-piece, heavy duty Screw Anchor with a finished hex head or flat head (countersunk). It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+™ is available as bright zinc-plated or mechanically galvanized plating. Suitable base materials include normal-weight concrete.

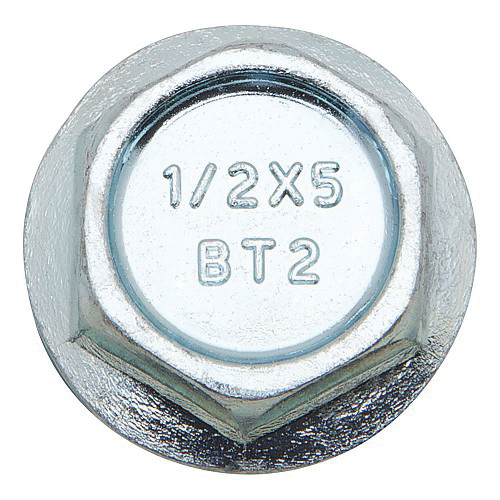

DeWALT® Screw-Bolt+™ Screw Anchor, Heavy Duty, 1/4 in Diameter, 1-3/4 in Overall Length, Hex Washer Head Drive, Carbon Steel, 1 in Minimum Embedment Depth, Zinc Plated, Applicable Materials: Normal Weight Concrete, Lightweight Concrete, Concrete Over Steel Deck, Grouted Concrete Masonry and Brick Masonry, 21/64 in H Head, 3/4 in Maximum Work Thickness, 2080 lb Shear Strength, 1725 lb Tensile Strength

• Designed for standard ANSI tolerance drill bits
• Low installation torque in concrete and masonry
• Ratchet teeth on underside of hex washer head lock against the fixture
• Fully removable and reinstallable in same hole
• Diameter, length and identifying marking stamped on head of each anchor
• Patented thread design offers toughened threads for tapping high strength concrete
• Universal product for concrete and grouted/solid masonry
• Can be installed closer to a free-edge than traditional expansion anchors

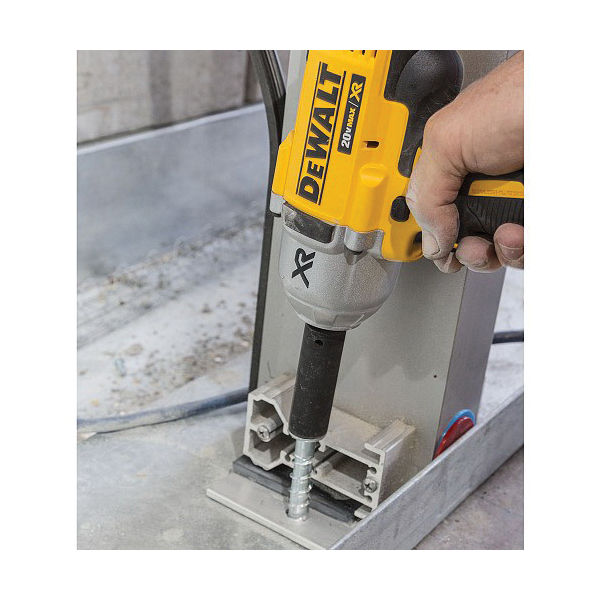

• Fast installation with powered impact wrench, but can also be installed manually
• One-piece, finished head design
• Ultimate load capacity: 1325 lb tensile strength when embedded in 2500 psi, 1400 lb tensile strength when embedded in 3000 psi, 1530 lb tensile strength when embedded in 4000 psi, 1725 lb tensile strength when embedded in 6000/8000 psi compressive strength concrete
• Ultimate load capacity - 1660 lb shear strength when embedded in 2500 psi, 1755 lb shear strength when embedded in 3000 psi, 1910 lb shear strength when embedded in 4000 psi and 2080 lb shear strength when embedded in 6000/8000 psi compressive strength concrete
• Allowable load capacity - 330 lb tensile strength when embedded in 2500 psi, 350 lb tensile strength when embedded in 3000 psi, 385 lb tensile strength when embedded in 4000 psi and 430 lb tensile strength when embedded in 6000/8000 psi compressive strength concrete
• Allowable load capacity - 415 lb shear strength when embedded in 2500 psi, 440 lb shear strength when embedded in 3000 psi, 480 lb shear strength when embedded in 4000 psi and 520 lb shear strength when embedded in 6000/8000 psi compressive strength concrete
