DeWALT® DW735 DEWT-DW735
  1. pin-int

DEWT-DW735

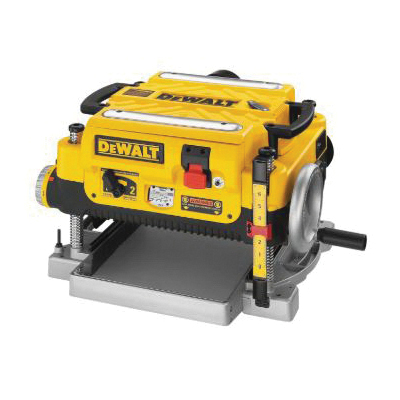

DeWALT® DW735 Heavy Duty Power Planer, 13 in W Cutting, 1/8 in Depth of Cut, 20000/10000 rpm Speed, 2 hp, 120 V AC, Lock-On/Speed Gear Box Switch

  • Manufacturer: Stanley Black & Decker
  • Brand Name: DeWALT®
  • Part Number: DEWT-DW735
  • MPN: DW735
  • UPC: 028877349046
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

The DW735 13 in three knife, two speed thickness planer is powered by a 15 A motor to easily managing large cuts in wider materials. three knife cutter head with 10000 rpm and feed speed options for 96 or 179 CPI provide optimal performance.

DeWALT® Power Planer, Heavy Duty, Tool, 13 in Cutting Width, 1/8 in Depth of Cut, 30000 cpm Cuts per Minute, 14/26 fpm Feed Rate, 3 Cutting Knives, 20000/10000 rpm Speed, 2 Speed, 2 hp, 120 V AC, 15 A, Cast Aluminum, Lock-On/Speed Gear Box Switch, 13-1/2 in H x 19-1/2 in W x 22-1/2 in D Dimensions

Amperage Rating      :      15 A
Cuts per Minute      :      30000 cpm
Cutting Width      :      13 in
Depth of Cut      :      1/8 in
Dimensions      :      13-1/2 in H x 19-1/2 in W x 22-1/2 in D
Feed Rate      :      14/26 fpm
Horsepower      :      2 hp
Material      :      Cast Aluminum
Number of Cutting Knives      :      3
Number of Speeds      :      2
Speed      :      20000/10000 rpm
Switch Type      :      Lock-On/Speed Gear Box
Tool/Kit      :      Bare Tool
Type      :      Heavy Duty
Voltage Rating      :      120 V AC
  • Powerful 15 A, 20000 rpm motor handles larger cuts in wider materials with ease

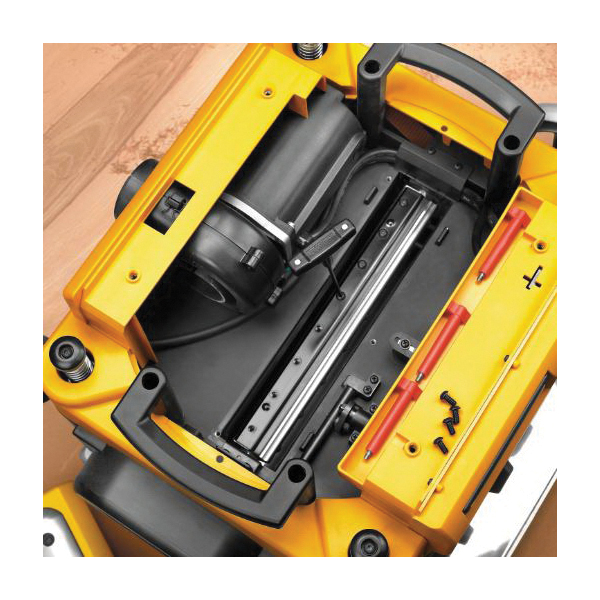

  • 3-knife cutter head with 10000 rpm cutter head speed delivers 30% longer knife life and makes knife change faster and easier
  • 2-speed gear box allows users to change feed speed to optimizing cuts per in at 96 or 179 CPI
  • Fan assisted chip ejection vacuums chips off of the cutter head and exhausts them out of the machine
  • 19-3/4 in cast aluminum base is 2X™ more rigid than a standard 10 in base and folding tables
  • Automatic carriage lock reduces the movement that causes snipe without the need for manual engagement by the user
  • Material removal gauge and extra large thickness scale deliver accurate cuts with every pass
  • Extra large turret depth stop allows user to return to most frequently used thicknesses with easy
