DeWALT® 7428SD1-PWR POWERS 7428SD1-PWR
  1. pin-int

POWERS 7428SD1-PWR

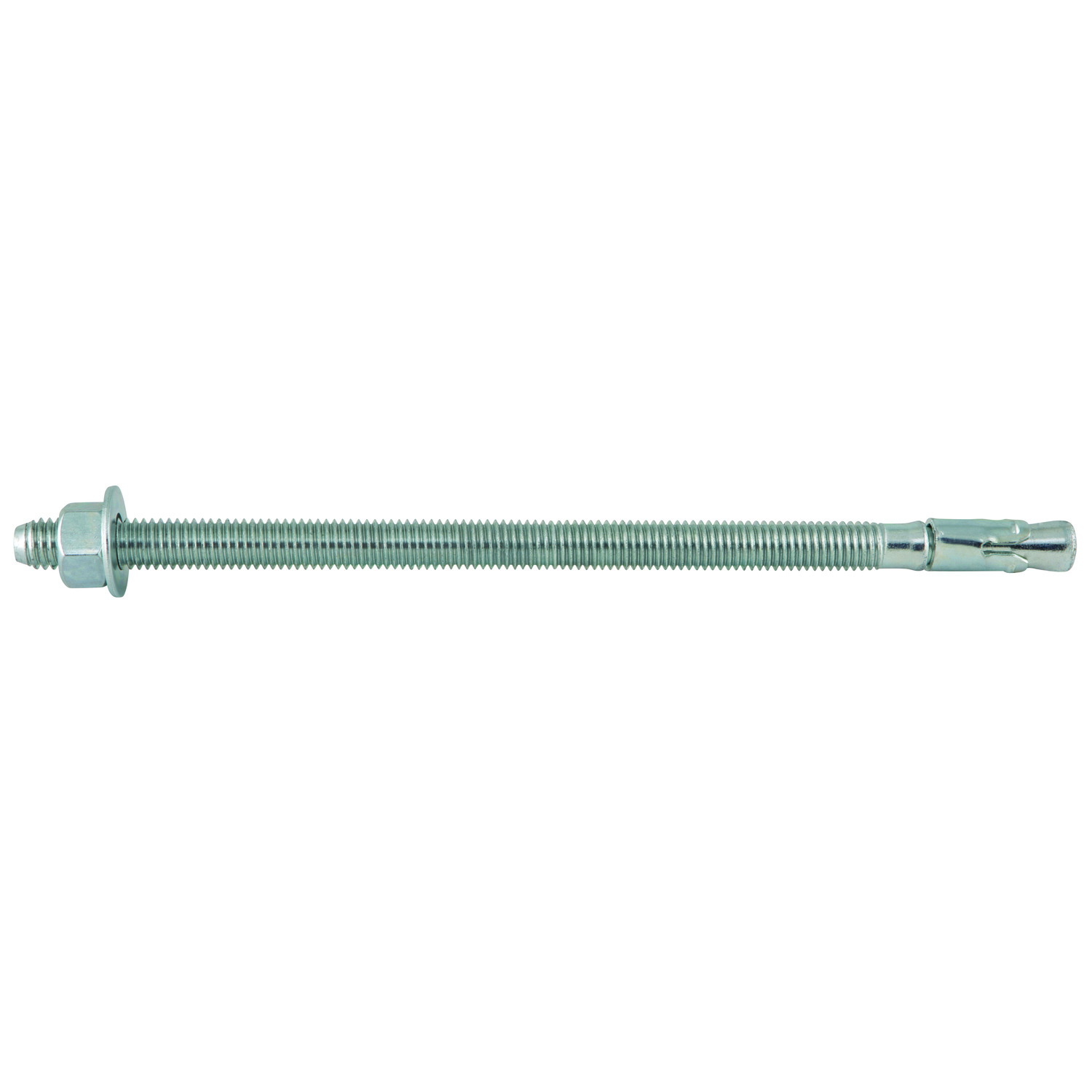

DeWALT® 7428SD1-PWR Wedge Expansion Anchor, 1/2 in Dia, 10 in OAL, 8-1/4 in L Thread, Carbon Steel, Zinc Plated

  • Manufacturer: Stanley Black & Decker
  • Brand Name: DeWALT®
  • Part Number: POWERS 7428SD1-PWR
  • MPN: 7428SD1-PWR
  • UPC: 753527810514
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

The Power-Stud®+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.

DeWALT® Wedge Expansion Anchor, 1/2 in Diameter, 10 in Overall Length, 8-1/4 in Thread Length, Carbon Steel, Zinc Plated, 2-1/4 in Minimum Embedment Depth, 1/2 in Drill, 1/2-13 Thread, UNC Thread, 7-1/4 in Maximum Work Thickness, 4195 lb Shear Strength, 4155 lb Tensile Strength

Diameter      :      1/2 in
Drill Size      :      1/2 in
Finish      :      Zinc Plated
Material      :      Carbon Steel
Maximum Work Thickness      :      7-1/4 in
Minimum Embedment Depth      :      2-1/4 in
Overall Length      :      10 in
Shear Strength      :      4195 lb
Tensile Strength      :      4155 lb
Thread Length      :      8-1/4 in
Thread Size      :      1/2-13
Thread Type      :      UNC
  • Consistent performance in high and low strength concrete
  • Anchor can be installed through standard fixture holes
  • Anchor design allows for follow-up expansion after setting under tensile load
  • Nominal drill bit size is the same as the anchor diameter
  • Length ID code and identifying marking stamped on head of each anchor
