DeWALT® 07315-PWR POWERS 07315-PWR
  1. pin-int

POWERS 07315-PWR

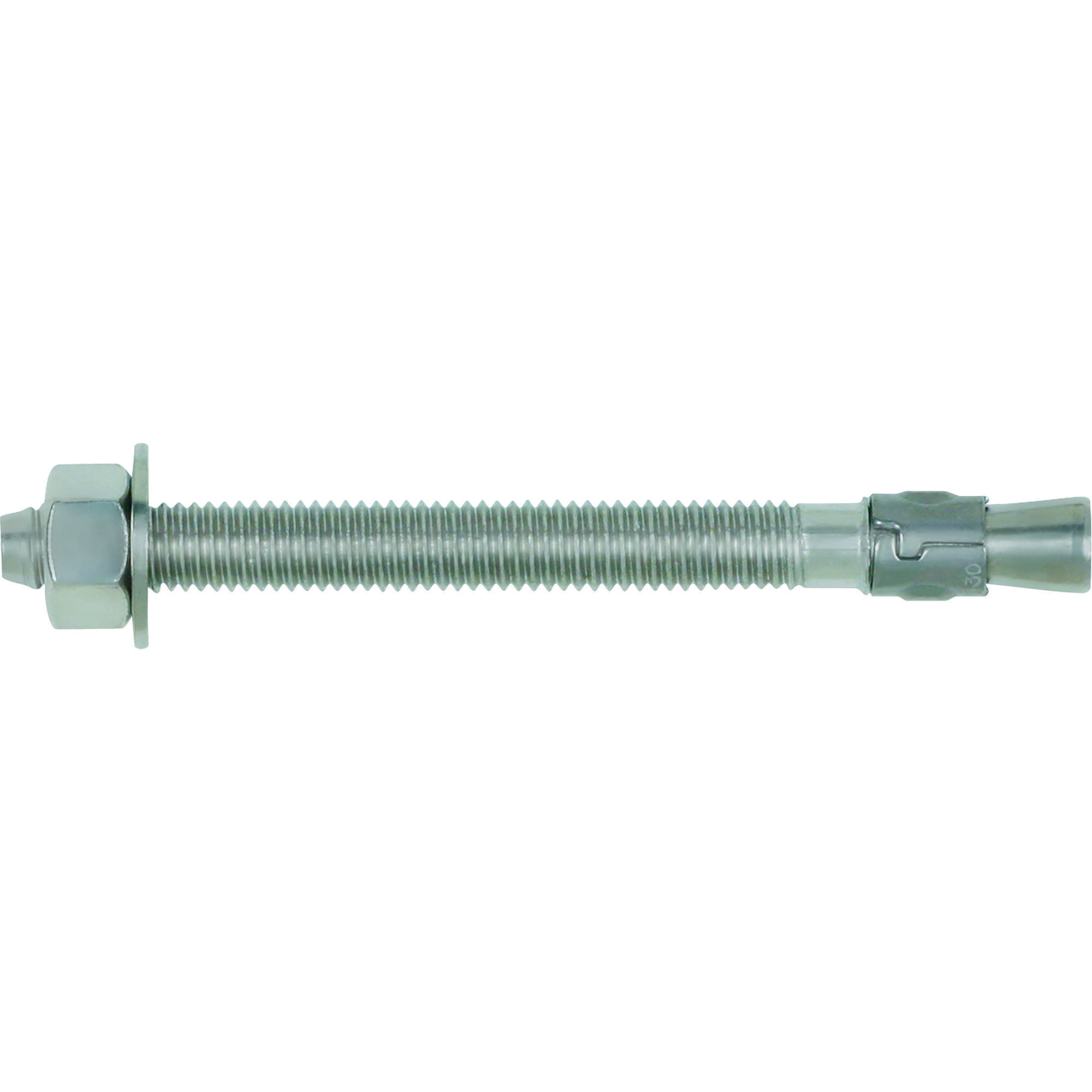

DeWALT® Power-Stud® 07315-PWR Wedge Expansion Anchor, 3/8 in Dia, 3-3/4 in OAL, 2-5/8 in L Thread, 304 Stainless Steel

  • Manufacturer: Stanley Black & Decker
  • Brand Name: DeWALT®
  • Part Number: POWERS 07315-PWR
  • MPN: 07315-PWR
  • UPC: 753520731564
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

The Power-Stud® anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in type 304 and type 316 stainless steel.

DeWALT® Power-Stud® Wedge Expansion Anchor, 3/8 in Diameter, 3-3/4 in Overall Length, 2-5/8 in Thread Length, 304 Stainless Steel, 1-5/8 in Minimum Embedment Depth, 3/8 in Drill, 3/8-16 Thread, UNC Thread, 2-1/8 in Maximum Work Thickness, 3760 lb Shear Strength, 4075 lb Tensile Strength

Diameter      :      3/8 in
Drill Size      :      3/8 in
Material      :      304 Stainless Steel
Maximum Work Thickness      :      2-1/8 in
Minimum Embedment Depth      :      1-5/8 in
Overall Length      :      3-3/4 in
Shear Strength      :      3760 lb
Tensile Strength      :      4075 lb
Thread Length      :      2-5/8 in
Thread Size      :      3/8-16
Thread Type      :      UNC
  • Fully threaded, medium duty all-purpose anchor
  • Anchors can be installed through the fixture for hole spotting not required
  • Clip design prevents spinning during installation
  • Length ID stamped on each threaded anchor
  • Chamfered impact section prevents damage to threads
  • Nominal drill bit diameter same as anchor diameter
