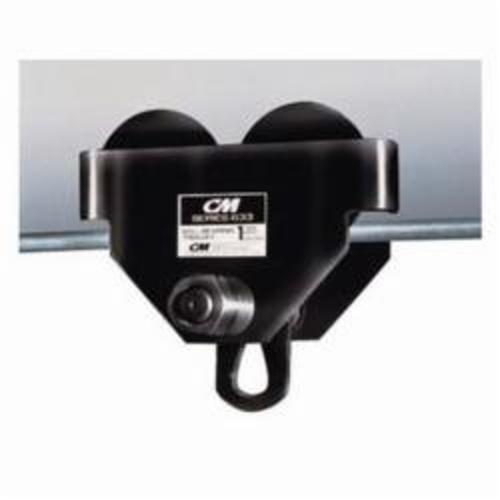

The CM series 633 wide range trolley features a simple, rugged design built for trouble free service and ease of operation across a wide range of beam applications.
CM® Manual Trolley, Plain, Series: 633, 10000 lb, Fits Beam Flange Width: 4-5/8 to 8 in, Fits Beam Height: 10 to 24 in, 94 in Minimum Radius Curve, 6-1/8 in Wheel Tread Dia, Steel Wheel, 2-1/8 in Headroom To Bail
| Fits Beam Flange Width | : | 4-5/8 to 8 in |
| Fits Beam Height | : | 10 to 24 in |
| Headroom to Bail | : | 2-1/8 in |
| Load Capacity | : | 10000 lb |
| Minimum Radius Curve | : | 94 in |
| Series | : | 633 |
| Type | : | Plain |
| Wheel Material | : | Steel |
| Wheel Tread Diameter | : | 6-1/8 in |
- Rugged steel side plates formed to include bumpers and trolley guards
- Frames connected by steel equalizer pin, secured by two nuts on each side
- Universal tread flanged track wheels equipped with shielded ball bearings
- Easy rolling on American standard shapes, wide flange shapes or patented rail
- Hardened wheels and axles for added strength and durability
- Spacer washers can be shifted inside or outside for easy adjustment to wide range of beams
- To be used with hook suspended hoist
- Suspension plate for easy attachment is standard
- Bearings prepacked with lifetime lubricant
