Cleveland® C57140 GTD 357140
  1. pin-int

GTD 357140

Cleveland® C57140 1012 Standard Spiral Point Machine Tap, Right Hand Cutting, 1/4-28 Thread, H3 Thread Limit, Bottoming Chamfer, 2 Flutes, Uncoated, HSS

  • Manufacturer: Greenfield Industries
  • Brand Name: Cleveland®
  • Part Number: GTD 357140
  • MPN: C57140
  • UPC: 697334571407
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

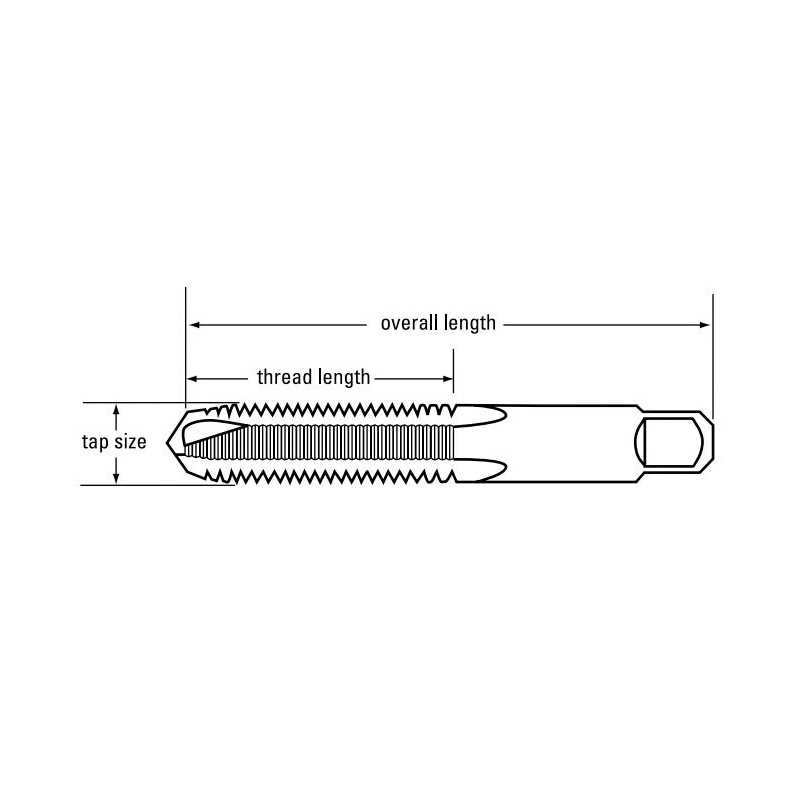

Cleveland® Spiral Point Machine Tap, Standard, Series: 1012, Measurement System: Imperial, Ground/UNF Thread Standard, 1/4-28 Thread, Bottoming Chamfer, 2 Flutes, HSS, Uncoated, Class of Fit: 2B, Right Hand Cutting Direction, 0.63 in Thread Length, 2-1/2 in Overall Length, 0.255 in Shank Diameter, 5/16 in Shank Length, Steel and Non-Ferrous Materials Material Application, H3 Thread Limit

Chamfer Type      :      Bottoming
Class of Fit      :      2B
Cutting Direction      :      Right Hand
Finish/Coating      :      Uncoated
Material Application      :      Steel and Non-Ferrous Materials
Material      :      HSS
Measurement System      :      Imperial
Number of Flutes      :      2
Overall Length      :      2-1/2 in
Series      :      1012
Shank Diameter      :      0.255 in
Shank Length      :      5/16 in
Thread Length      :      0.63 in
Thread Limit      :      H3
Thread Size      :      1/4-28
Thread Standard      :      UNF
Type      :      Standard
  • Ground Thread
