BESSEY PVH3813

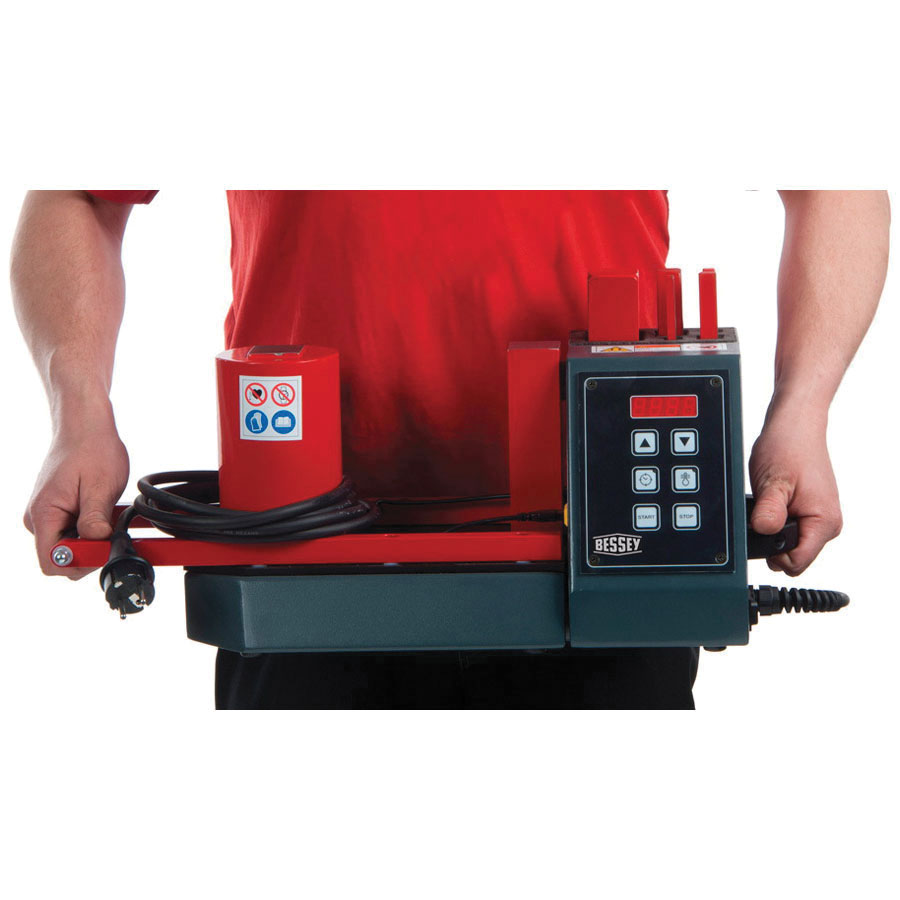

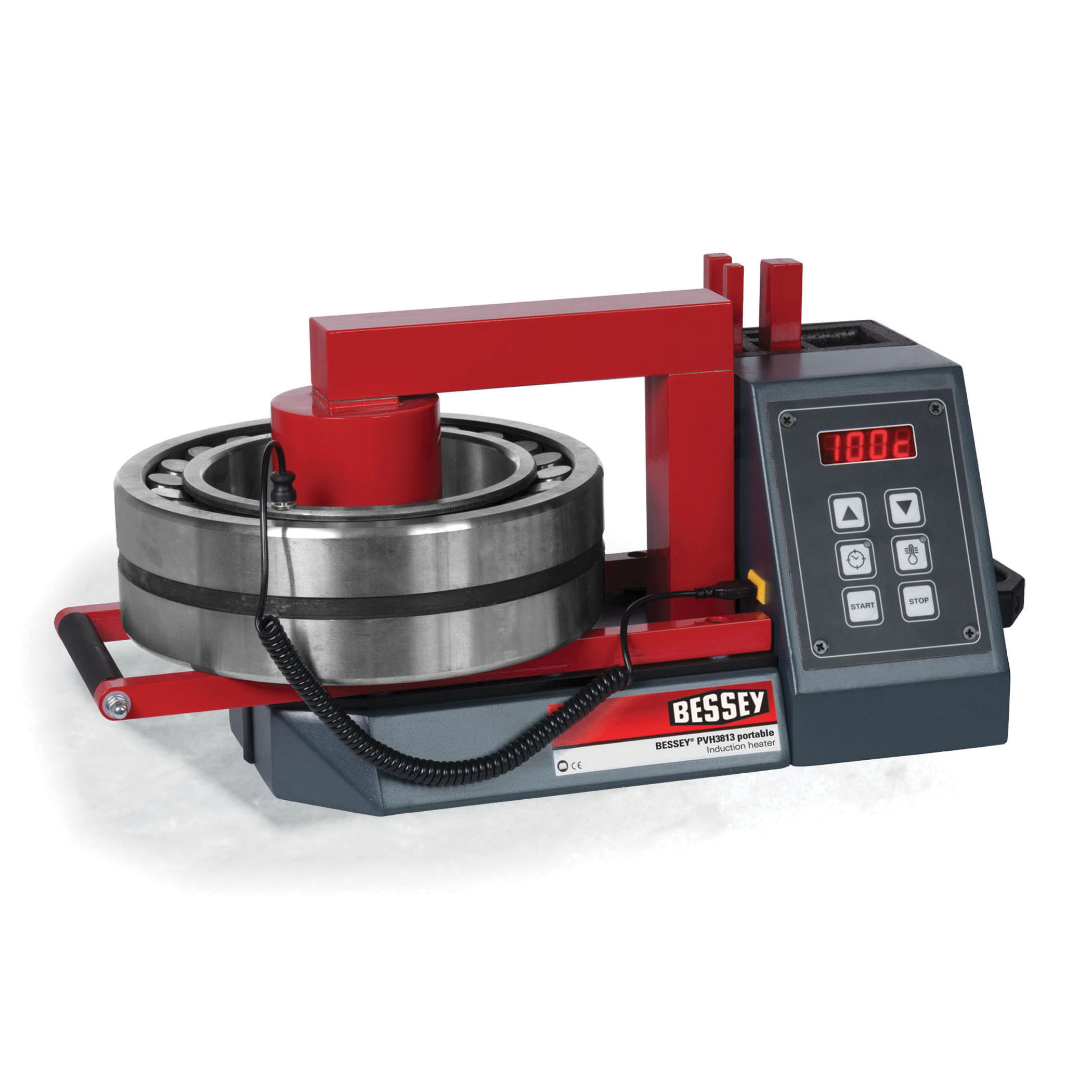

Bessey® PVH3813 Portable Induction Bearing Heater, 15 in OD Bearing, 5-1/4 in W Bearing, 3/8 to 3-7/8 in, 120 VAC, 1800 W Power Rating

  • Manufacturer: Bessey Tools
  • Brand Name: Bessey®
  • Part Number: BESSEY PVH3813
  • MPN: PVH3813
  • UPC: 788502203173
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Induction bearing heaters offer a fast, consistent and cost-effective method to heat a bearing for correct mounting. Induction heating is quick and evenly heats up the bearing. A quick precision mount of a bearing saves money in two ways. Less down time, extended lifespan. Works on bearings, sprockets, gears, couplings and sleeves. Automatically demagnetizes bearings and other work pieces. The PVH3813 is a portable model that plugs into any standard 110/120 V, 15 A circuit.

Bessey® Bearing Heater, Portable Induction, 15 in Bearing Maximum Outside Diameter, 5-1/4 in Bearing Width, 3/8 to 3-7/8 in Bearing ID, 120 VAC, 15 A, 1800 W Power, 60 Hz Frequency, 464 deg F Maximum, 23.622 in L x 8.66 in W x 10.827 in H Dimensions

Amperage Rating      :      15 A
Bearing ID Range      :      3/8 to 3-7/8 in
Bearing Maximum Outside Diameter      :      15 in
Bearing Width      :      5-1/4 in
Dimensions      :      23.622 in L x 8.66 in W x 10.827 in H
Frequency Rating      :      60 Hz
Maximum Temperature      :      464 deg F
Power Rating      :      1800 W
Type      :      Portable Induction
Voltage Rating      :      120 V AC
  • Vertical or horizontal heating
  • Bessey® induction bearing heaters help you to get the maximum longevity from your bearings
  • Longer bearing life means lower operating costs
  • Reduced risk to operator, compared with torches, ovens and oil baths
  • Automatic demagnetization of bearings
  • Easy to use
  • Ready in minutes
  • Max programmable time is 45 min
