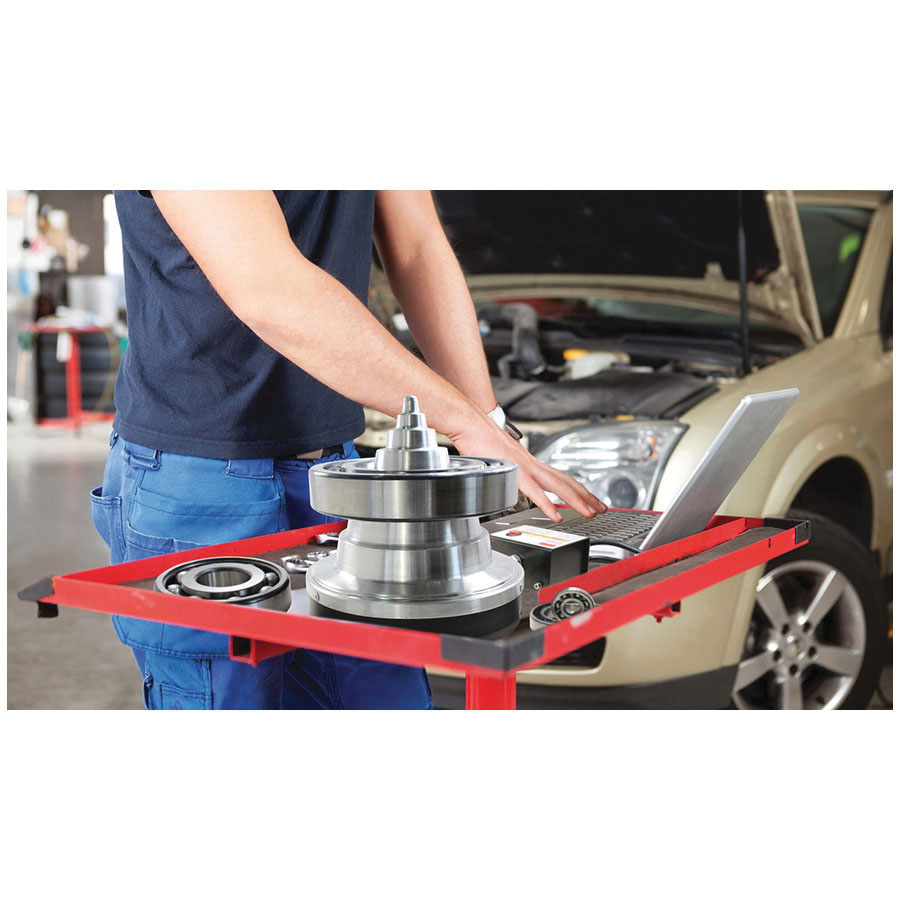

BESSEY GCS-NCB

Heating a bearing expands it for precise placement and alignment on the shaft without damage. Pressing (driving) a cold bearing onto a shaft can cause it to misalign as little as a 0.001 in difference can reduce a bearing's lifespan by 50%. Bearing heaters generate clean, even heat for precision placement, resulting in extended bearing life. Heating alternatives such as hot oil baths and torches are messy and dangerous. Torches and element tops create uneven heat and expansion and cause hot spots that can change the metallurgical properties of the bearing steel.

Bessey® Cone Bearing Heater, Non-Induction, Series: GCS, 3/5 to 8-1/4 in Bearing ID, 15.43 lb Bearing Maximum Weight, 120 VAC, 15 A, 725 W Power, 50/60 Hz Frequency, 248 deg F Maximum, 9-1/2 in H x 8-5/8 in W Dimensions

• No control box
• Great alternative to larger units at a much lower cost point
• Far safer than heating bearings with oil baths or hotplate
• Lower cost than larger induction heaters
• Lightweight and portable, easy to move around a shop or factory floor
• No special wiring or set up, uses standard wall plugs 120 V/15 A
• Start and stop with a switch
• One cone bearing heater fulfills a range of bearing sizes
