Allied Machine & Engineering 454T-0208 AMEC 454T-0208
  1. pin-int

AMEC 454T-0208

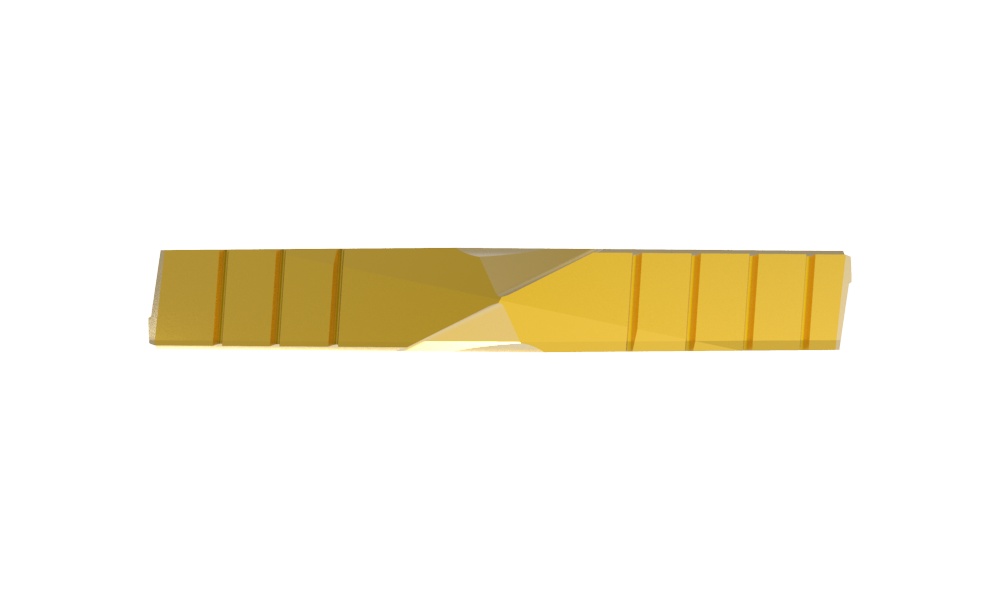

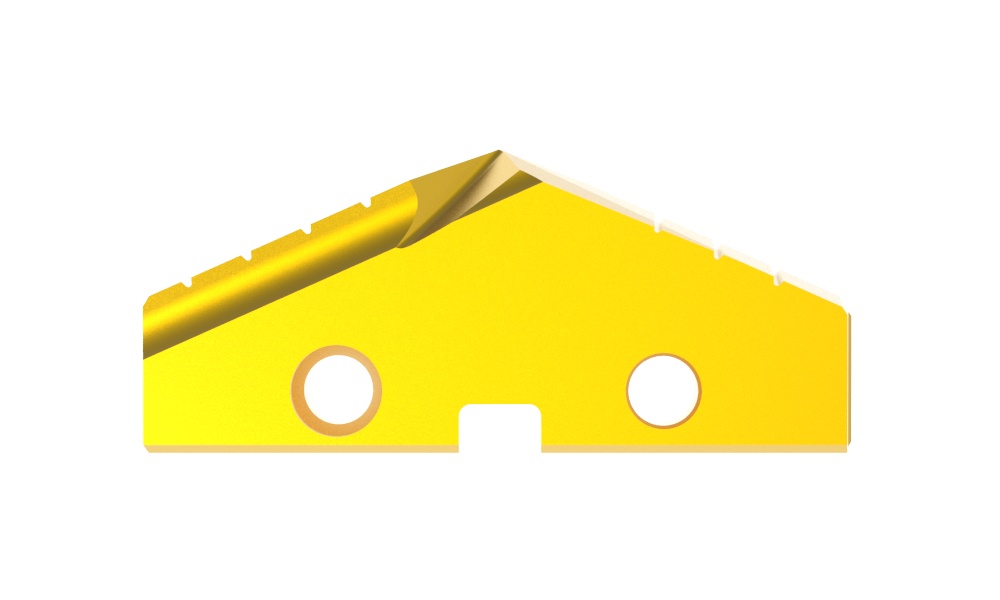

Allied Machine & Engineering GEN2 T-A® 454T-0208 4 Series Replaceable Spade Drill Insert, 2-1/4 in Dia, 5/16 in THK, Standard Geometry, TiN

  • Manufacturer: Allied Machine & Engineering
  • Brand Name: Allied Machine & Engineering
  • Part Number: AMEC 454T-0208
  • MPN: 454T-0208
  • UPC: 662802071420
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

The GEN2 T-A® drill inserts provide lower drilling forces, increased stability, smoother breakout on through-hole and allows for improved chip formation. These inserts feature Allied's exclusive AM200® coating for increased tool life.

Allied Machine & Engineering GEN2 T-A® Spade Drill Insert, Replaceable, Series: 4 Series, 2-1/4 in Diameter, 5/16 in Thickness, Standard Geometry, 132 deg Included Angle, #4 Seat, HSS Super Cobalt, TiN

Diameter      :      2-1/4 in
Finish      :      TiN
Geometry      :      Standard
Included Angle      :      132 deg
Material      :      HSS Super Cobalt
Seat Size      :      #4
Series      :      4 Series
Thickness      :      5/16 in
Type      :      Replaceable
  • Improve stability
  • Reduce thrust
  • Improve tool life
  • Higher penetration rates
  • Helical margin
