Allied Machine & Engineering 435T-0300 AMEC 435T-0300
  1. pin-int

AMEC 435T-0300

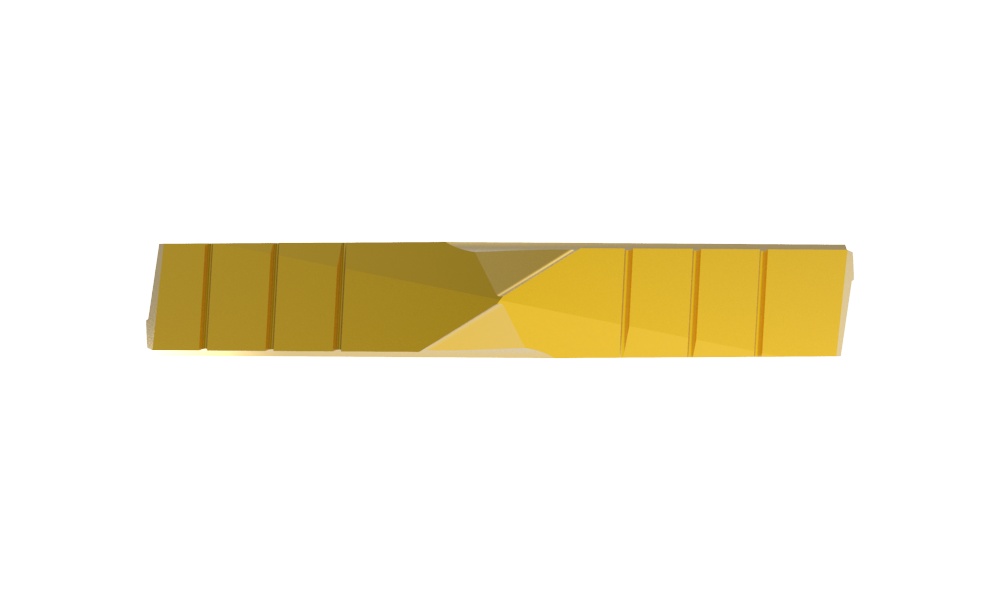

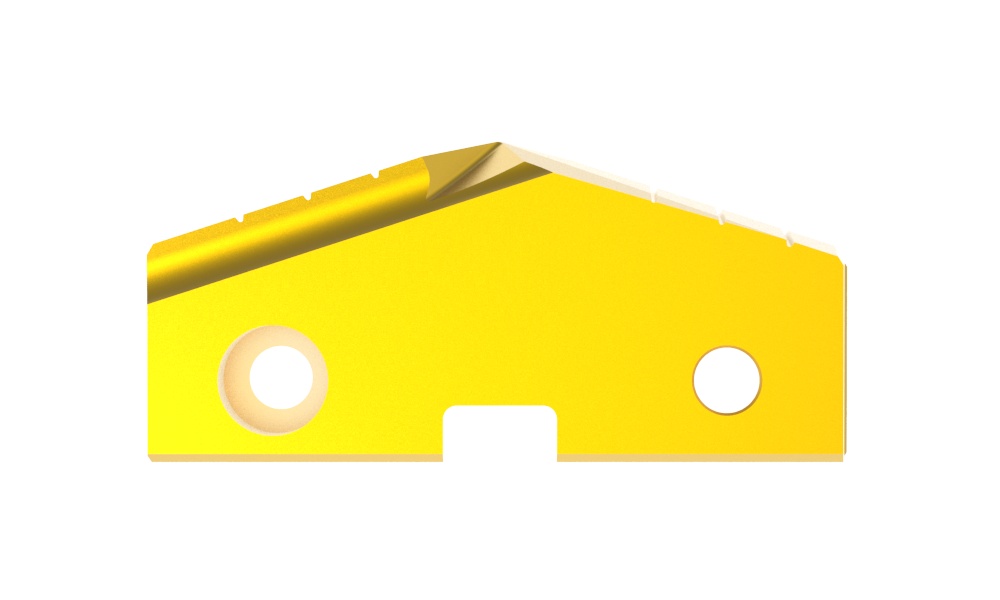

Allied Machine & Engineering GEN2 T-A® 435T-0300 5 Series Replaceable Spade Drill Insert, 3 in Dia, 7/16 in THK, Standard Geometry, M4 Material Grade, TiN

  • Manufacturer: Allied Machine & Engineering
  • Brand Name: Allied Machine & Engineering
  • Part Number: AMEC 435T-0300
  • MPN: 435T-0300
  • UPC: 662802070324
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

The GEN2 T-A® drill inserts provide lower drilling forces, increased stability, smoother breakout on through-hole and allows for improved chip formation. These inserts feature Allied's exclusive AM200® coating for increased tool life.

Allied Machine & Engineering GEN2 T-A® Spade Drill Insert, Replaceable, Series: 5 Series, 3 in Dia, 7/16 in Thickness, Standard, 144 deg Included Angle, #5 Seat, HSS, TiN, Material Grade: M4

Diameter      :      3 in
Finish      :      TiN
Geometry      :      Standard
Included Angle      :      144 deg
Material Grade      :      M4
Material      :      HSS
Seat Size      :      #5
Series      :      5 Series
Thickness      :      7/16 in
Type      :      Replaceable
  • Improve stability
  • Reduce thrust
  • Improve tool life
  • Higher penetration rates
  • Helical margin
