AMEC 1021T-0112

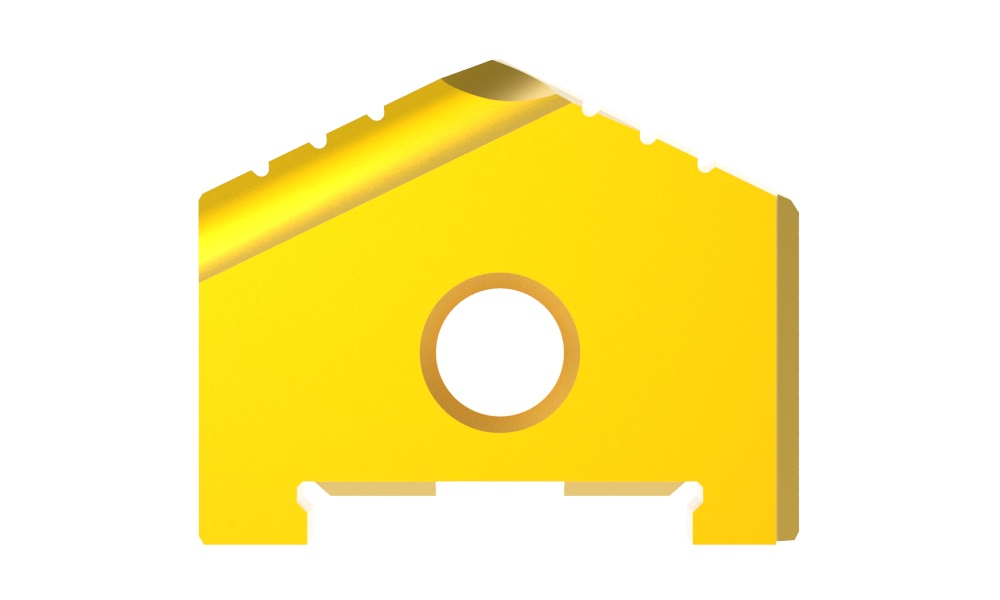

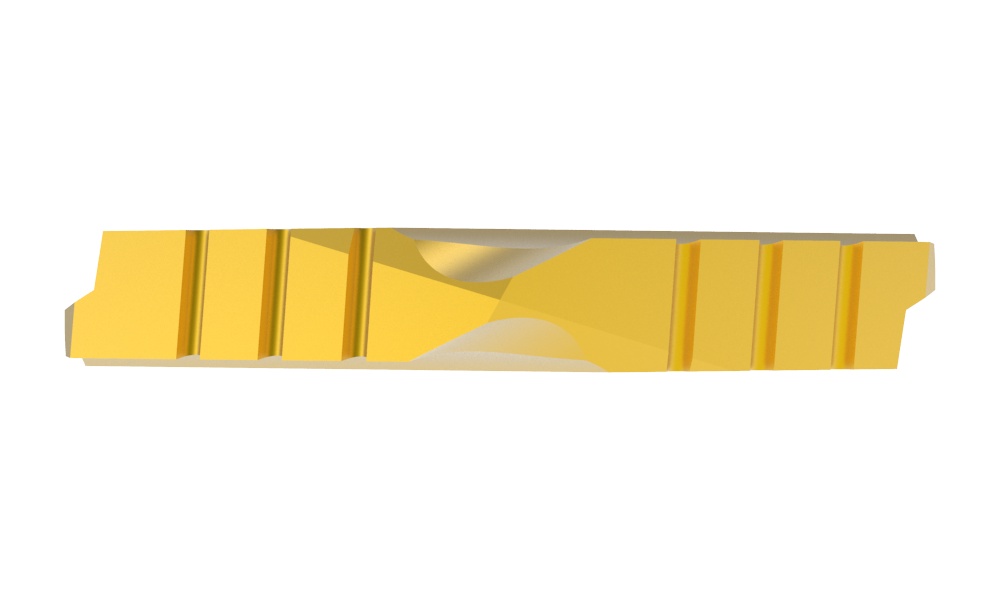

Allied Machine & Engineering 1021T-0112 A Series Oversized Replaceable Spade Drill Insert, 1-3/8 in Dia, 3/16 in THK, Standard Geometry, TiN
- Manufacturer: Allied Machine & Engineering
- Brand Name: Allied Machine & Engineering
- Part Number: AMEC 1021T-0112
- MPN: 1021T-0112
- UPC: 662802002295
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
High Performance spade drills (HP) were designed for end-users who had Universal style holders, but were looking for improved performance. HP spade drills fit into the Universal holders, but offer the high-tech geometry and performance benefits of the Original T-A® drill inserts.
Allied Machine & Engineering Spade Drill Insert, Oversized Replaceable, Series: DWDCO, 1-3/8 in Dia, 3/16 in Thickness, Standard, 130 deg Included Angle, A Seat, 7/8 in Length, HSS, TiN
| Diameter | : | 1-3/8 in |
| Finish | : | TiN |
| Geometry | : | Standard |
| Included Angle | : | 130 deg |
| Length | : | 7/8 in |
| Material | : | HSS |
| Seat Size | : | A |
| Series | : | A Series |
| Thickness | : | 3/16 in |
| Type | : | Oversized Replaceable |
- Increase production 100 to 500% compared to uncoated Universal spade drill inserts
- Fit into Universal style holders
- Unique tool geometry reduces thrust upto 30% when compared to uncoated Universal style spade drills
- Increased tool life when compared to uncoated Universal style spade drills
- Reduced tool cost
