A Brand® 84400623 OSG 84400623
  1. pin-int

OSG 84400623

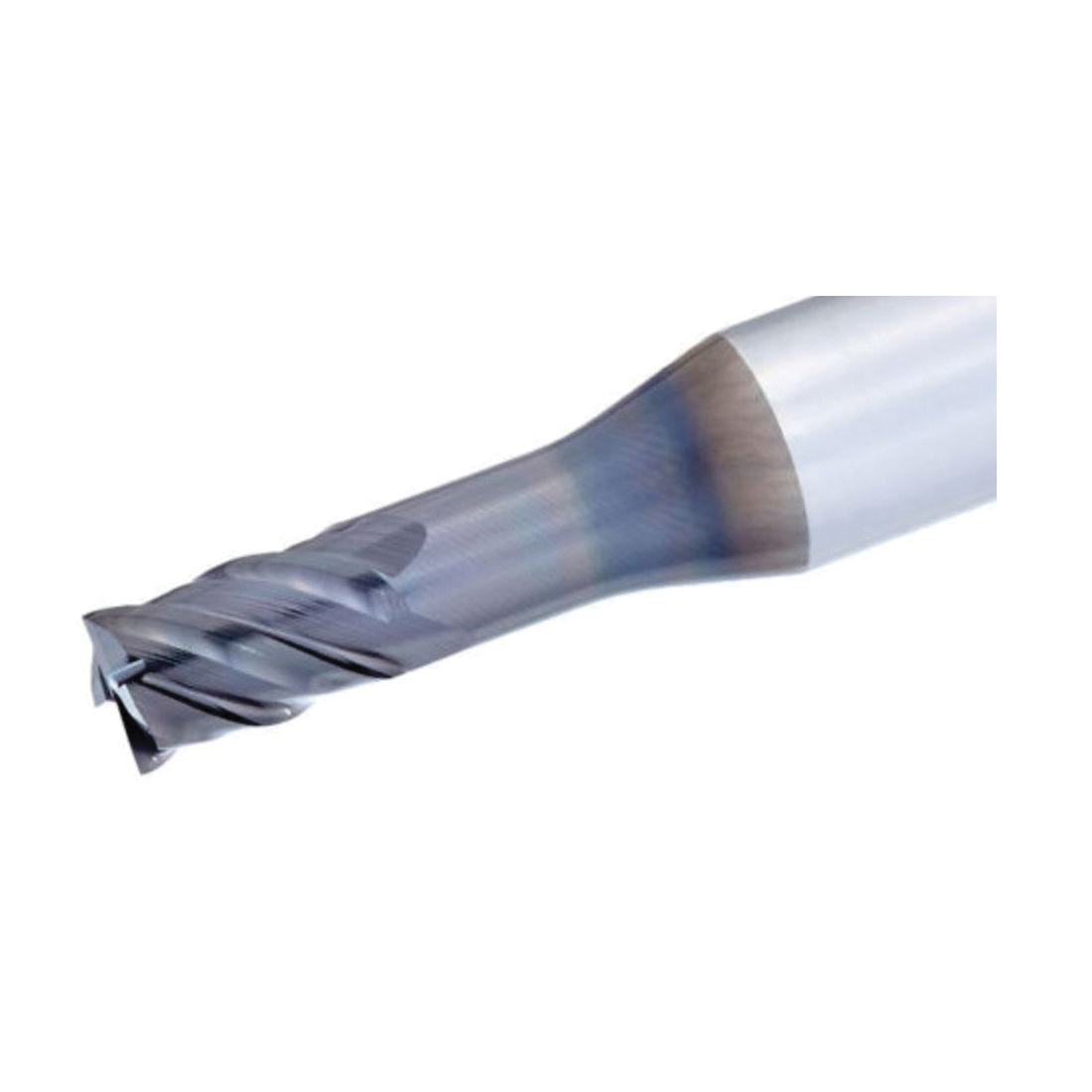

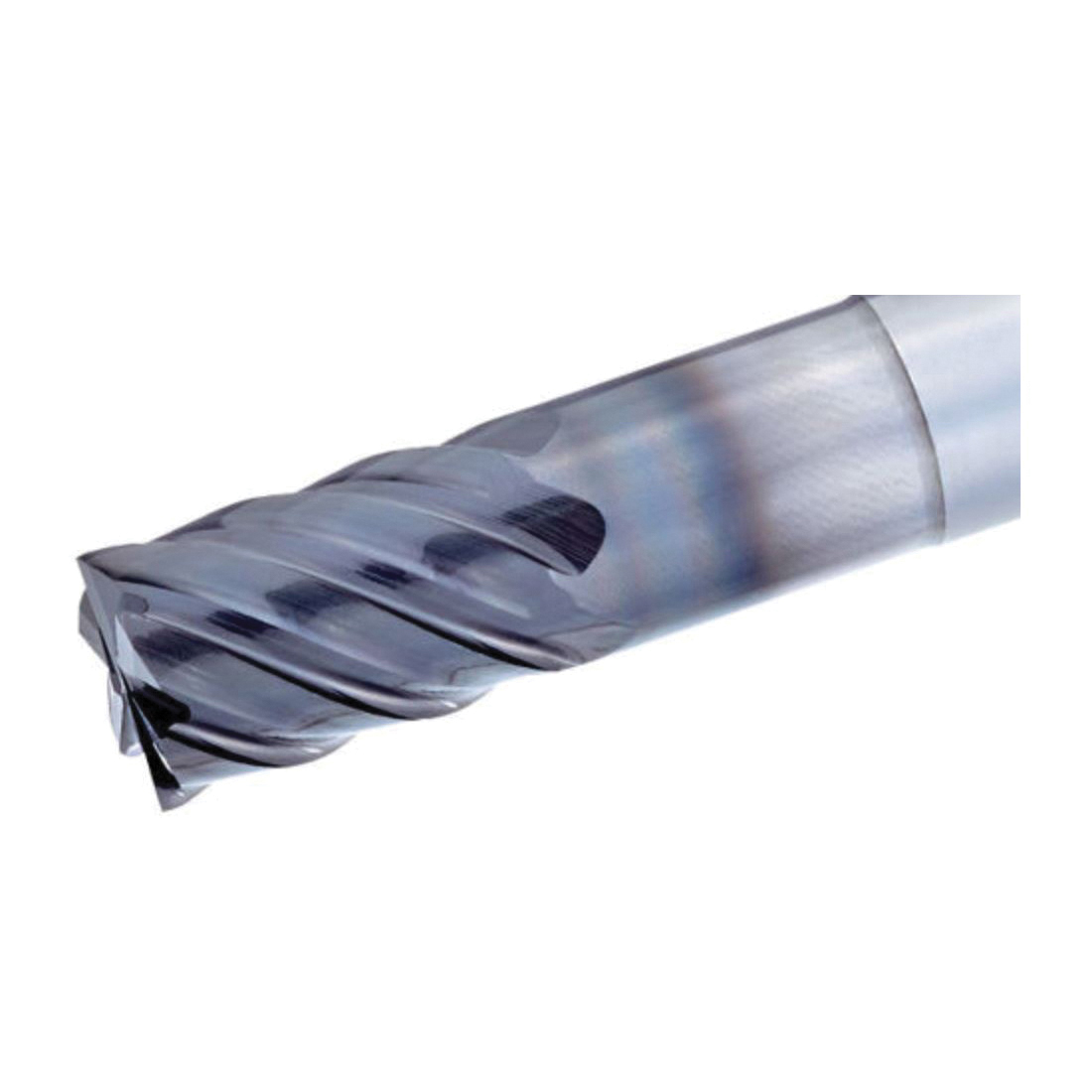

A Brand® AE-MS-H 84400623 Advanced Performance Center Cutting Regular Length Single End Square End Mill, 3/16 in Dia Cutter, 0.4688 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2 1/2 in OAL, Durorey Coated

  • Manufacturer: OSG
  • Brand Name: A Brand®
  • Part Number: OSG 84400623
  • MPN: 84400623
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Multi-flute square type and radius-type carbide end mills designed for stable and high efficiency milling of high hardness steels. With the addition of the new durorey coating uniquely engineered for high hardness steels, high chipping resistance is made possible even in work materials exceeding 60 HRC, allowing long tool life and high speed milling.

A Brand® AE-MS-H Square End Mill, Advanced Performance Center Cutting Regular Length Single End, Series: 8440, 3/16 in Cutter Dia, 2 1/2 in Overall Length, 0.4688 in Length of Cut, 4 Flutes, Multiple Flute, 1/4 in Shank Dia, Right Hand Cutting, 43 deg Helix Angle, Shrink Fit Shank, Solid Carbide, Durorey Coated

Cutter Diameter      :      3/16 in
Cutting Direction      :      Right Hand
Finish      :      Durorey Coated
Flute Type      :      Multiple
Helix Angle      :      43 deg
Length of Cut      :      0.4688 in
Material      :      Solid Carbide
Number of Flutes      :      4
Overall Length      :      2 1/2 in
Series      :      8440
Shank Diameter      :      1/4 in
Shank Type      :      Shrink Fit
Type      :      Advanced Performance Center Cutting Regular Length Single End

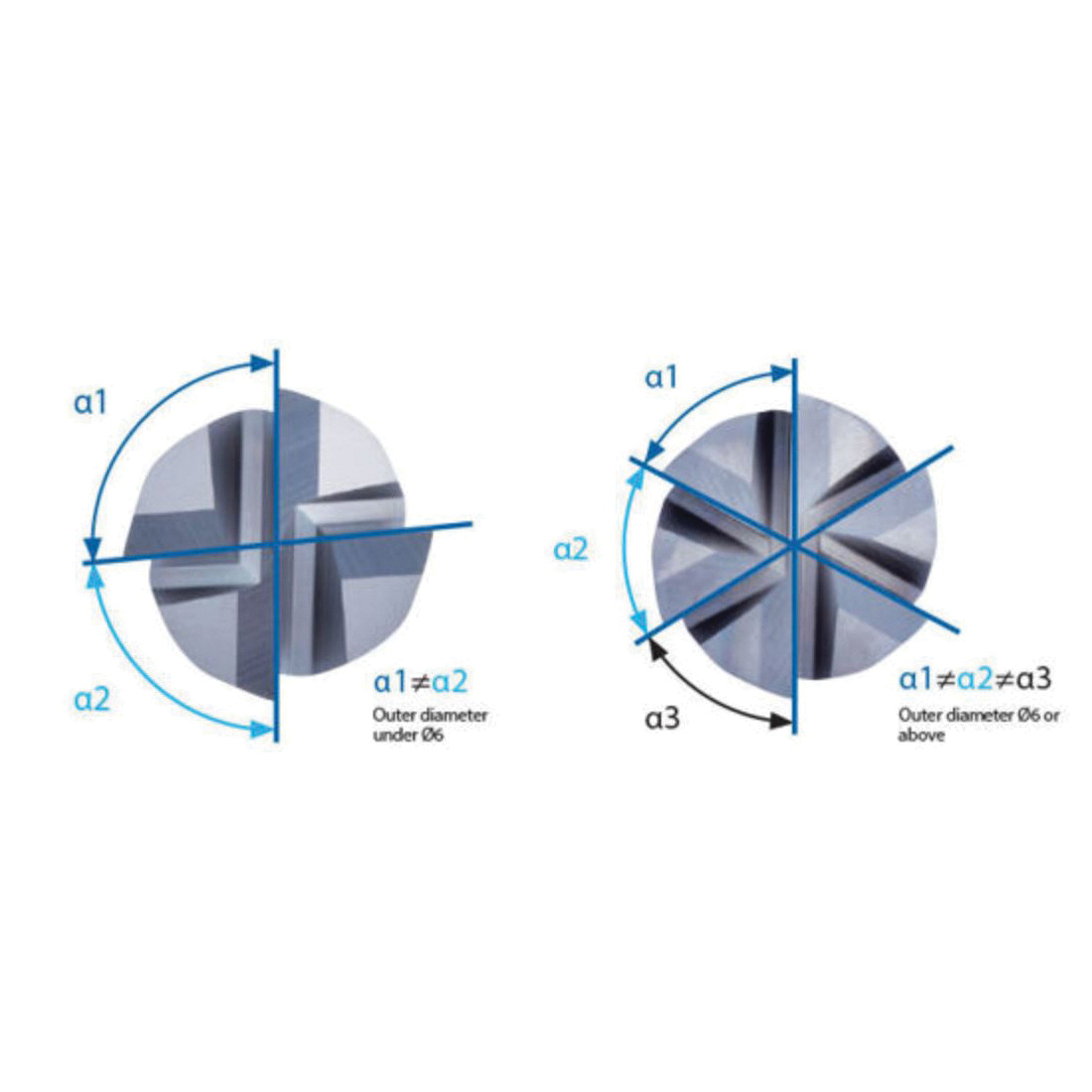

  • Variable indexing suppresses chattering
  • Cutting edge geometry for stable machining of high hardness steels
  • Durorey coating outstanding performance in high hardness steels
