OSG 84100723

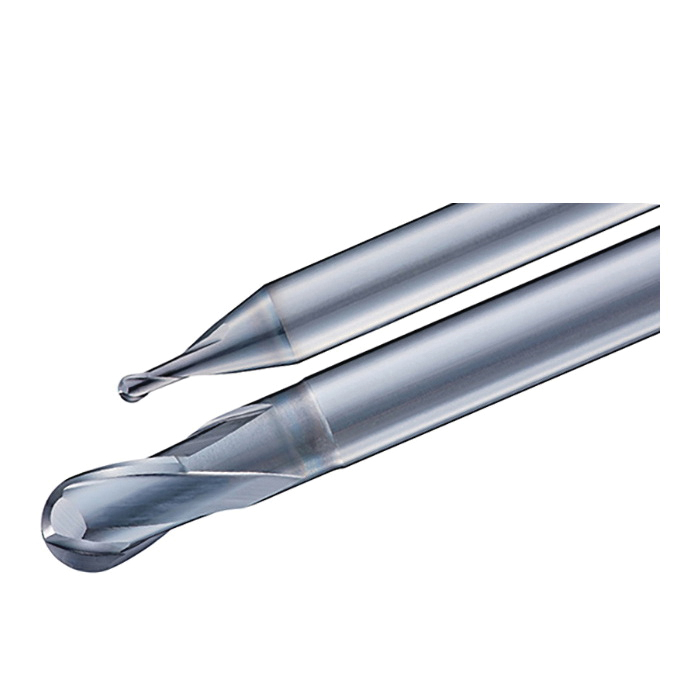

A Brand® AE-BD-H 84100723 Advanced Performance Center Cutting Finishing High Precision Single End Stub Length Type 2 Ball Nose End Mill, 3/8 in Dia Cutter, 0.563 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, Durorey Coated

  • Manufacturer: OSG
  • Brand Name: A Brand®
  • Part Number: OSG 84100723
  • MPN: 84100723
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

A Brand® AE-BD-H Ball Nose End Mill, Advanced Performance Center Cutting Finishing High Precision Single End Stub Length Type 2, Series: 8410, 3/8 in Cutter Dia, 3-1/2 in Overall Length, 0.563 in Length of Cut, 2 Flutes, 3/8 in Shank Dia, Right Hand Cutting, 25 deg Helix Angle, Shrink Fit Shank, Carbide, Durorey Coated

Cutter Diameter      :      3/8 in
Cutting Direction      :      Right Hand
Finish      :      Durorey Coated
Helix Angle      :      25 deg
Length of Cut      :      0.563 in
Material      :      Carbide
Number of Flutes      :      2
Overall Length      :      3-1/2 in
Series      :      8410
Shank Diameter      :      3/8 in
Shank Type      :      Shrink Fit
Type      :      Advanced Performance Center Cutting Finishing High Precision Single End Stub Length Type 2
  • Variable negative spiral gash controls chipping while securing cutting quality by making the negative angle weaker near the outer periphery, chipping resistance is enhanced in combination with the weaker helix angle specification
  • Superior ball R precision secures stable R accuracy across 180 deg
  • Thickness at center thickening of the center core to prevent deformation of the ball tip and improve control of chipping
  • Superior shank accuracy supports h4 tolerance (0/-0.004)
  • Ideal for shrink fit holders lineup of short shank type suitable for shrink fit holders
  • Smooth surface treatment improves surface accuracy by smoothening coating surface
