OSG 651056111

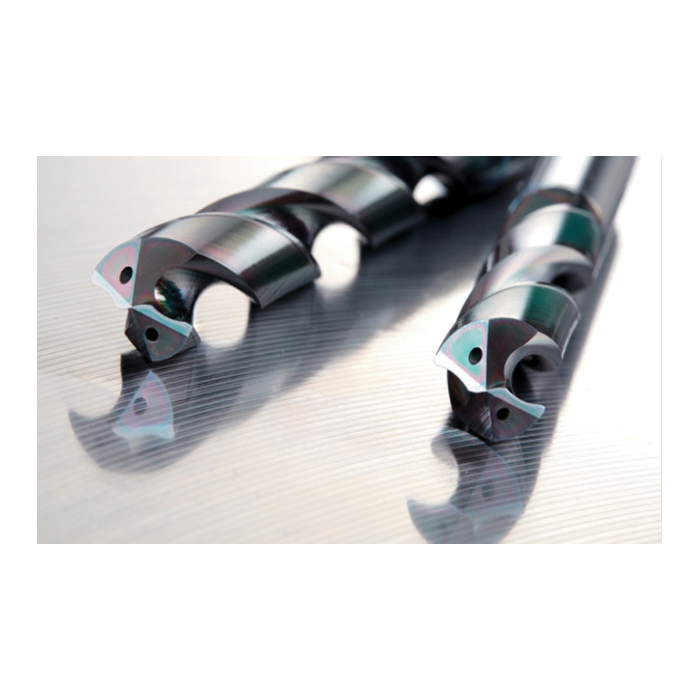

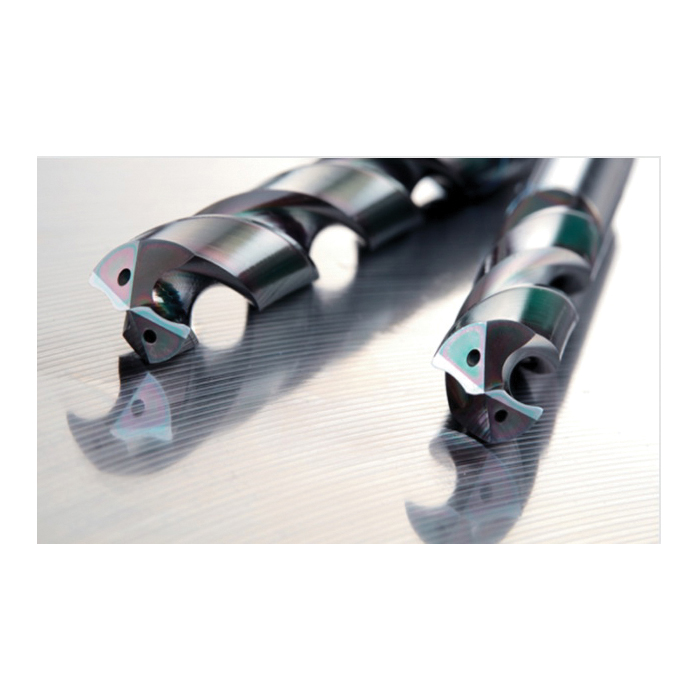

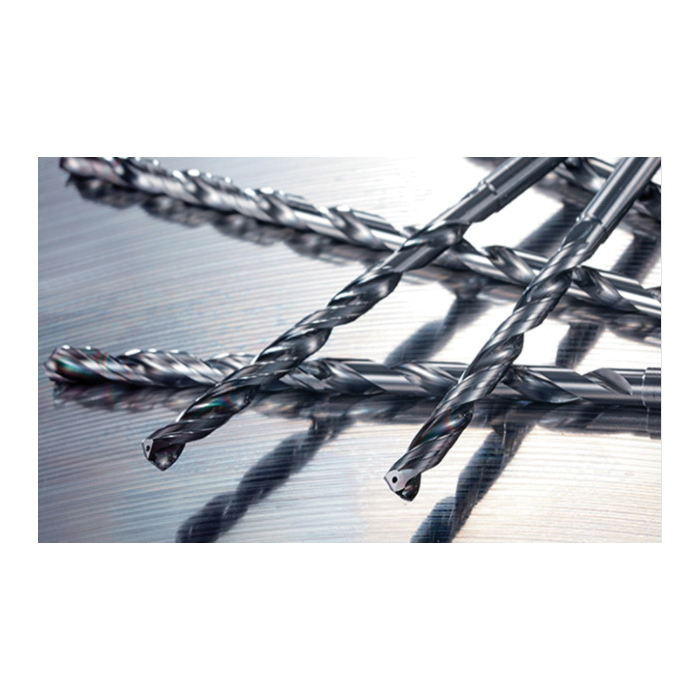

A Brand® ADO 651056111 High Performance Jobber Length Drill Bit, 9/16 in Drill - Fraction, 14.29 mm Drill - Metric, 0.5625 in Drill - Decimal Inch, 140 deg Point, Carbide, EgiAs
- Manufacturer: OSG
- Brand Name: A Brand®
- Part Number: OSG 651056111
- MPN: 651056111
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 1/PK
-
Price:
The A Brand® ADO drill series is OSG's premium line of carbide coolant-fed high performance drills, designed to drill in a variety of steels up to 50X diameter without pecking. New point geometry creates sharp cutting action for reduced thrust forces, while our proprietary EgiAs coating provides drastically higher hardness and heat resistance, enabling higher drilling speeds and incredible tool life.
A Brand® ADO Jobber Length Drill Bit, High Performance, Series: 6510, Imperial, Drill Size - Fraction: 9/16 in, Drill Size - Metric: 14.29 mm, Drill Size - Decimal Inch: 0.5625 in, 185 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 115 mm Flute Length, 15.9 mm Dia x 70 mm L Shank, Straight Shank, 140 deg Point, R-Thinning Point, Right Hand Cutting, Carbide Cutting Edge, Through Coolant: Yes, Carbide, EgiAs, Applicable Materials: 1010/1018 Low Carbon Steel, 1035/1045 Medium Carbon Steel, 1065 High Carbon Steel, 4140/4340 Alloy Steel, Die Steel, Cast Iron, 6AI4V (30 HRC) Titanium, 35 HRC Hardened Steel, 35-45 HRC Hardened Steel, 45-50 HRC Hardened Steel, 300/400/17-4 PH Stainless Steel, 6061/7075 Aluminum, Cast Aluminum, Inconel Nickel Alloy, Aluminum Alloy, Ferrous and Non-Ferrous Materials
| Applicable Materials | : | 1010/1018 Low Carbon Steel, 1035/1045 Medium Carbon Steel, 1065 High Carbon Steel, 4140/4340 Alloy Steel, Die Steel, Cast Iron, 6AI4V (30 HRC) Titanium, 35 HRC Hardened Steel, 35-45 HRC Hardened Steel, 45-50 HRC Hardened Steel, 300/400/17-4 PH Stainless Steel, 6061/7075 Aluminum, Cast Aluminum, Inconel Nickel Alloy, Aluminum Alloy, Ferrous and Non-Ferrous Materials |
| Cutting Depth | : | 5XD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | Carbide |
| Drill Diameter Measurement System | : | Imperial |
| Drill Size - Decimal Inch | : | 0.5625 in |
| Drill Size - Fraction | : | 9/16 in |
| Drill Size - Metric | : | 14.29 mm |
| Finish | : | EgiAs |
| Flute Length | : | 115 mm |
| Flute Type | : | Spiral |
| Material | : | Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 185 mm |
| Point Angle | : | 140 deg |
| Point Type | : | R-Thinning |
| Series | : | 6510 |
| Shank Size | : | 15.9 mm Dia x 70 mm L |
| Shank Type | : | Straight |
| Through Coolant (Yes/No) | : | Yes |
| Type | : | High Performance |
- OSG's EgiAs nano coating technology - higher coating oxidation temperature and hardness dramatically improve wear resistance

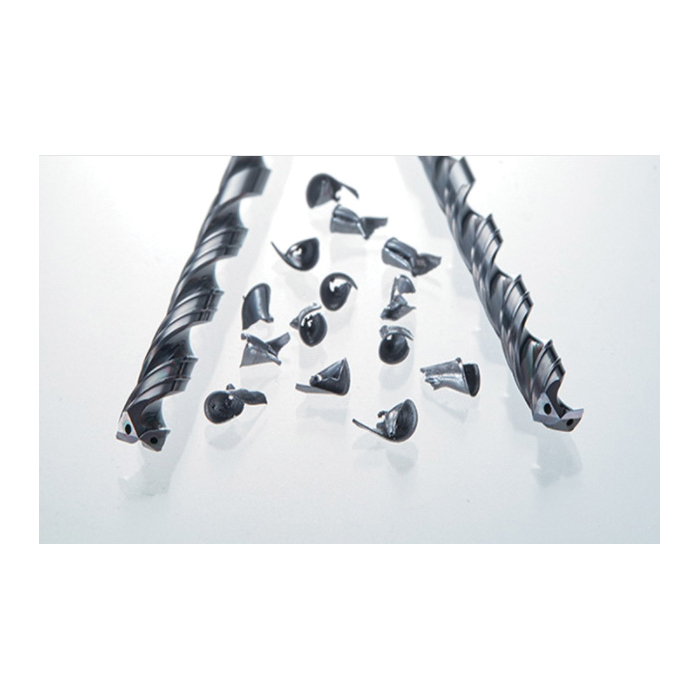

- Wavy form cutting edge design - sharper cutting action reduces thrust forces and produces smaller chips for easy hole processing
- Internal coolant holes - coolant delivery at the cutting edge reduces heat and improves chip evacuation, thereby increasing tool life and enabling faster drilling speeds
