A Brand® 650034211 OSG 650034211
  1. pin-int

OSG 650034211

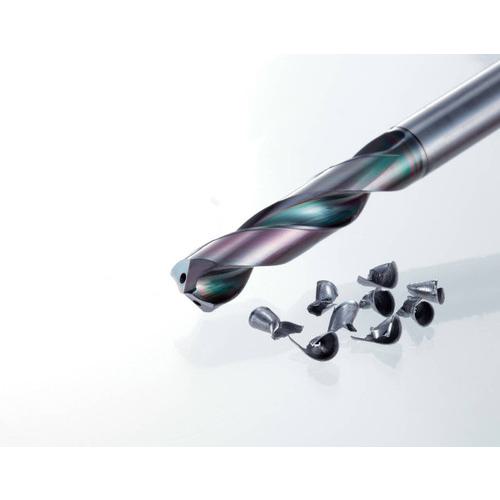

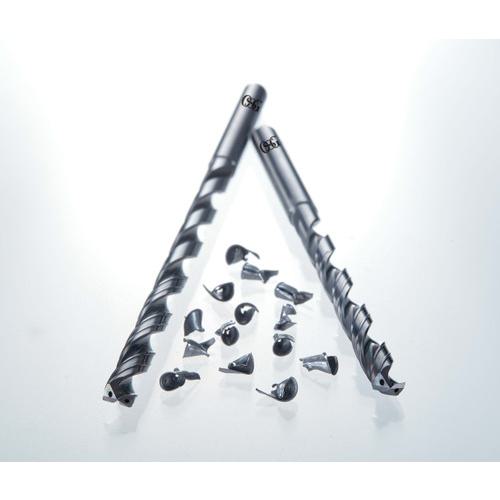

A Brand® 650034211 A Brand® ADO 6500 High Performance Stub Length Drill With Through Coolant, 11/32 in Drill - Fraction, 0.3438 in Drill - Decimal Inch, Carbide, EgiAs

  • Manufacturer: OSG
  • Brand Name: A Brand®
  • Part Number: OSG 650034211
  • MPN: 650034211
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Drills are used to make holes in a wide range of surfaces. OSG has received high acclaim for the development of high precision, high value added products for its use in automotive and aircraft part manufacture, which demands advanced processing techniques and zero margin of error.

A Brand® Stub Length Drill, High Performance, Series: A Brand® ADO 6500, Imperial, 11/32 in Drill - Fraction, 0.3438 in Drill - Decimal Inch, 101 mm Overall Length, 3xD Cutting Depth, 2 Flutes, Spiral Flute, 44 mm Flute Length, 3/8 in Shank, Straight Shank, 140 deg Point, R-Thinning Point, Right Hand Cutting Direction, Carbide Cutting Edge, Carbide, EgiAs, Iridescent Red, Applicable Materials: Ferrous and Non-Ferrous Metals

Applicable Materials      :      Ferrous and Non-Ferrous Metals
Color      :      Iridescent Red
Cutting Depth      :      3xD
Cutting Direction      :      Right Hand
Cutting Edge Material      :      Carbide
Drill Diameter Measurement System      :      Imperial
Drill Size - Decimal Inch      :      0.3438 in
Drill Size - Fraction      :      11/32 in
Finish      :      EgiAs
Flute Length      :      44 mm
Flute Type      :      Spiral
Material      :      Carbide
Number of Flutes      :      2
Overall Length      :      101 mm
Point Angle      :      140 deg
Point Type      :      R-Thinning
Series      :      ADO 6500
Shank Size      :      3/8 in
Shank Type      :      Straight
Type      :      High Performance
  • Medium to long flute length drills for a wide range of work materials
  • OSG EgiAs nano coating technology higher coating oxidation temp and hardness dramatically improve wear-resistance
  • Wavy form cutting edge design sharper cutting action reduces thrust forces and produces smaller chips for easy hole processing
  • Internal coolant holes - coolant delivery at the cutting edge reduces heat and improves chip evacuation, thereby increasing tool life and enabling faster drilling speeds
