OSG 3056194

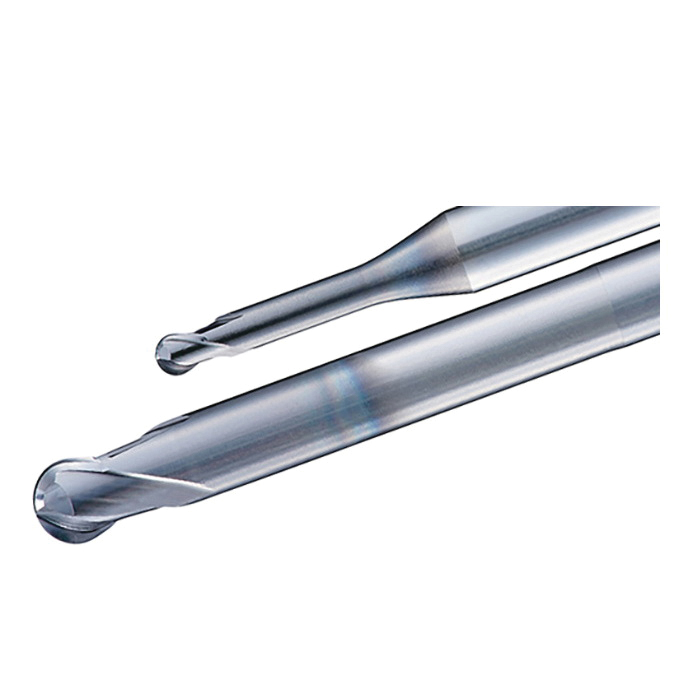

A Brand® AE-LNBD-H 3056194 8590 Advanced Performance Center Cutting Finishing High Precision Long Neck Rib Processing Single End Stub Length Type 1 Ball Nose End Mill, 0.8 mm Dia Cutter, 0.6 mm Length of Cut, 2 Flutes, 4 mm Dia Shank, 45 mm OAL

  • Manufacturer: OSG
  • Brand Name: A Brand®
  • Part Number: OSG 3056194
  • MPN: 3056194
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

A Brand® AE-LNBD-H Ball Nose End Mill, Advanced Performance Center Cutting Finishing High Precision Long Neck Rib Processing Single End Stub Length Type 1, Series: 8590, 0.8 mm Cutter Dia, 45 mm Overall Length, 0.6 mm Length of Cut, 2 Flutes, 4 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Carbide, SiC

Cutter Diameter      :      0.8 mm
Cutting Direction      :      Right Hand
Finish      :      SiC
Helix Angle      :      30 deg
Length of Cut      :      0.6 mm
Material      :      Carbide
Number of Flutes      :      2
Overall Length      :      45 mm
Series      :      8590
Shank Diameter      :      4 mm
Type      :      Advanced Performance Center Cutting Finishing High Precision Long Neck Rib Processing Single End Stub Length Type 1
  • Teardrop-shaped outer periphery prevents chattering and chipping strong back taper geometry enables milling by point, which prevents chattering and chipping, resulting in improvement of surface accuracy

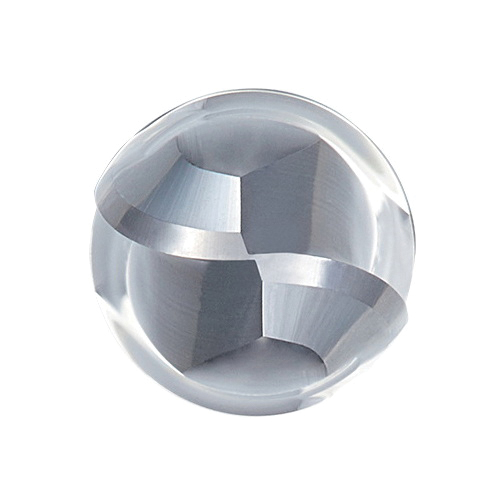

  • Superior ball R precision secures stable R accuracy across 180 deg
  • Thickness at center thickening of the center core to prevent deformation of the ball tip and improve control of chipping
  • Superior shank accuracy supports h4 tolerance (0/-0.004)
  • Smooth surface treatment improves surface accuracy by smoothening coating surface
