MMMA-43215

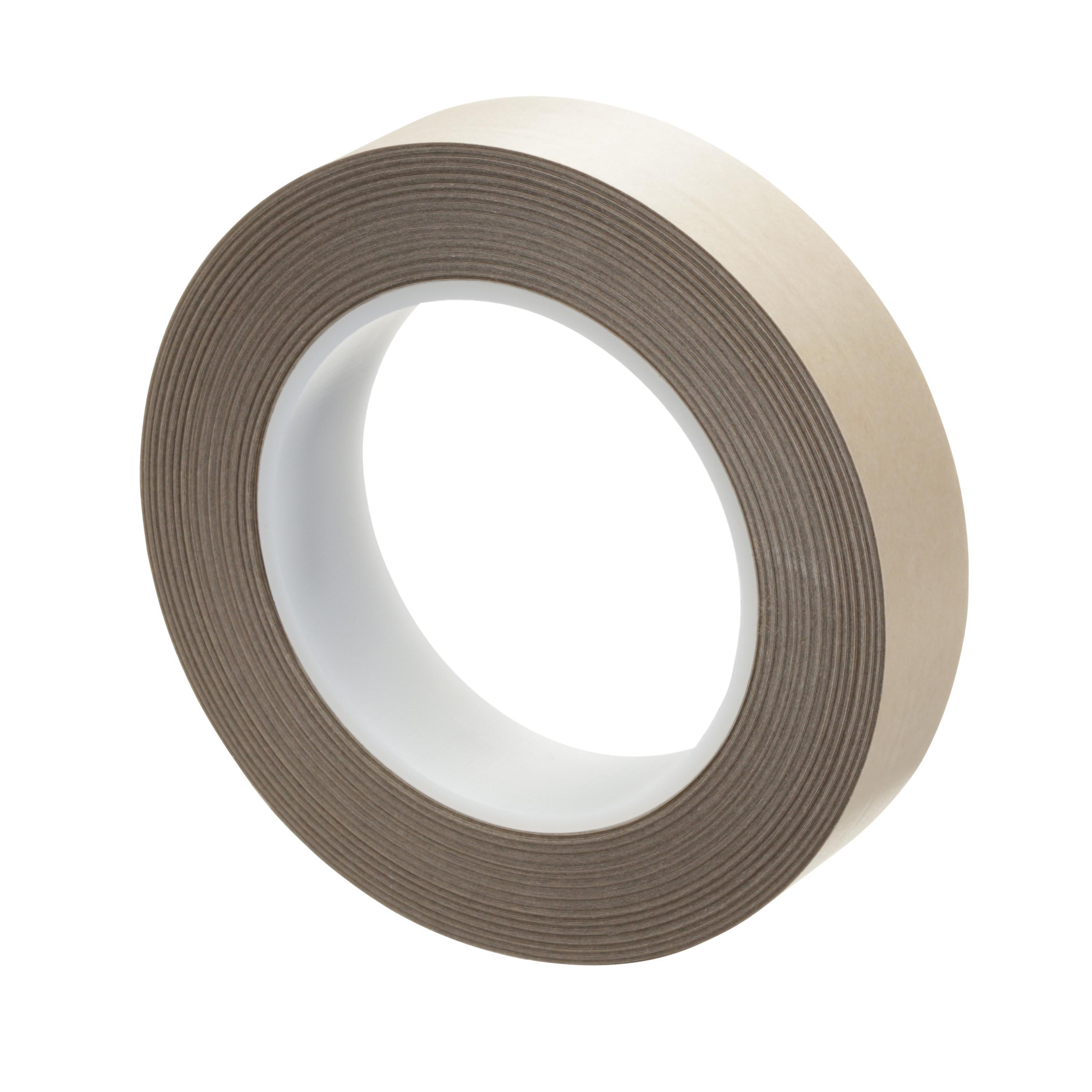

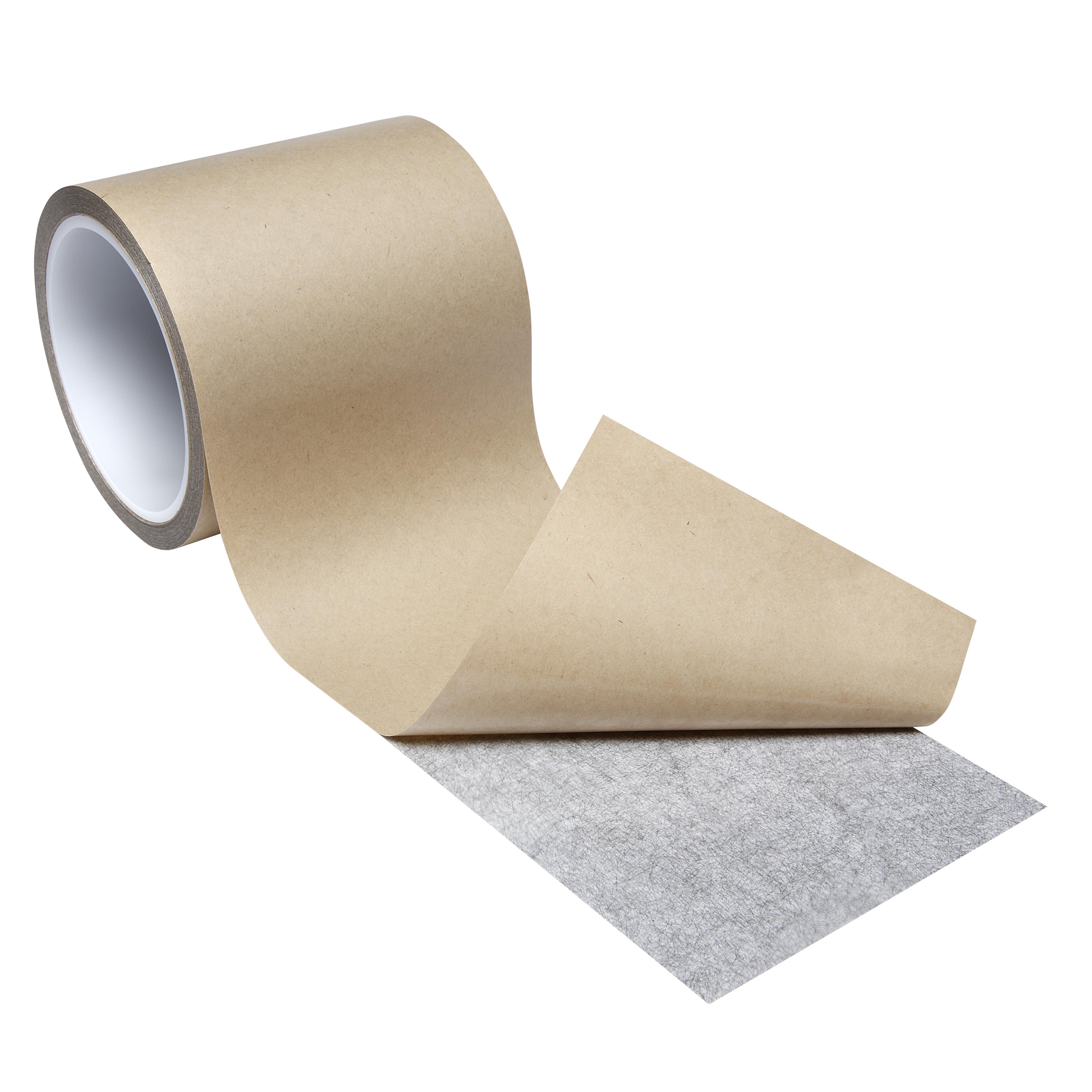

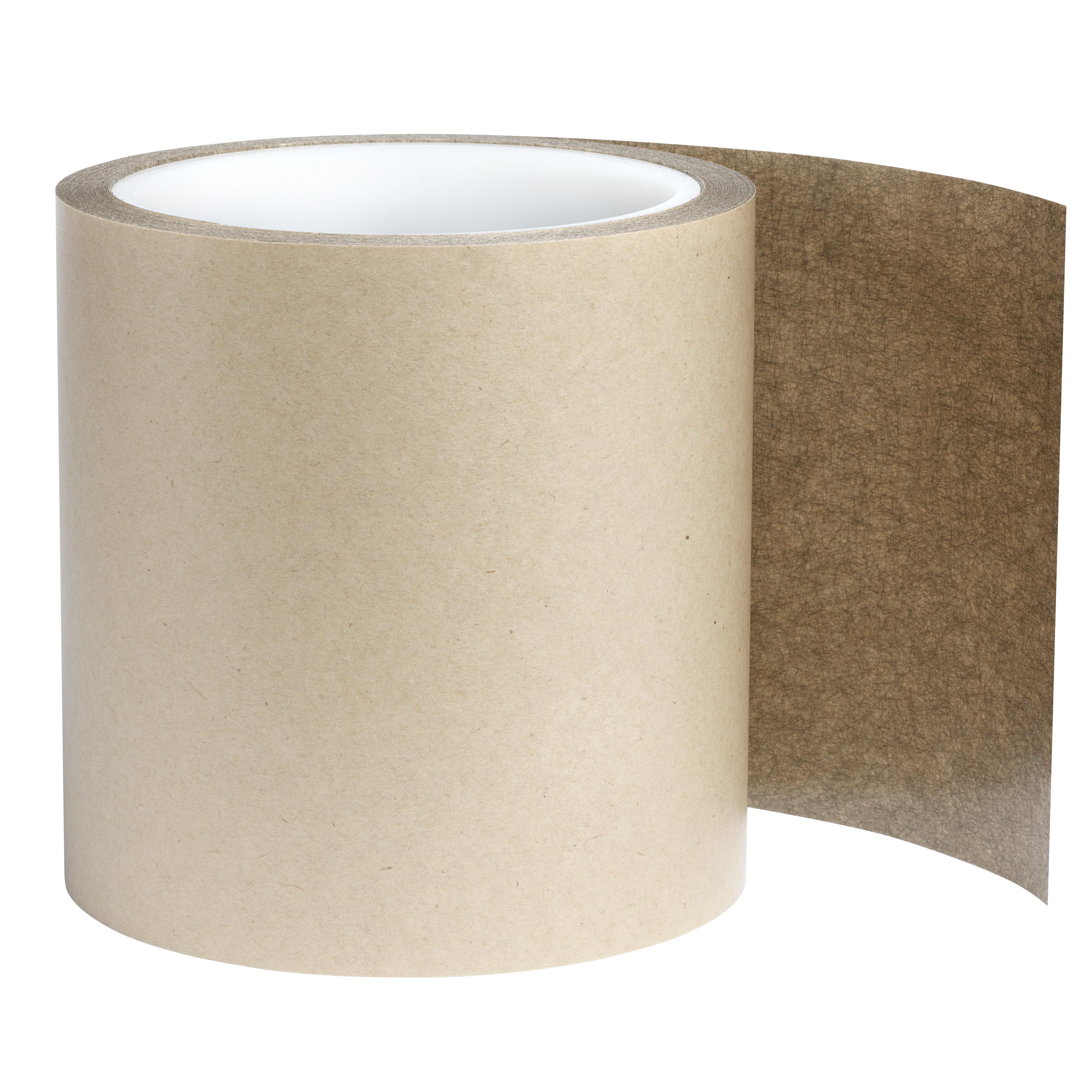

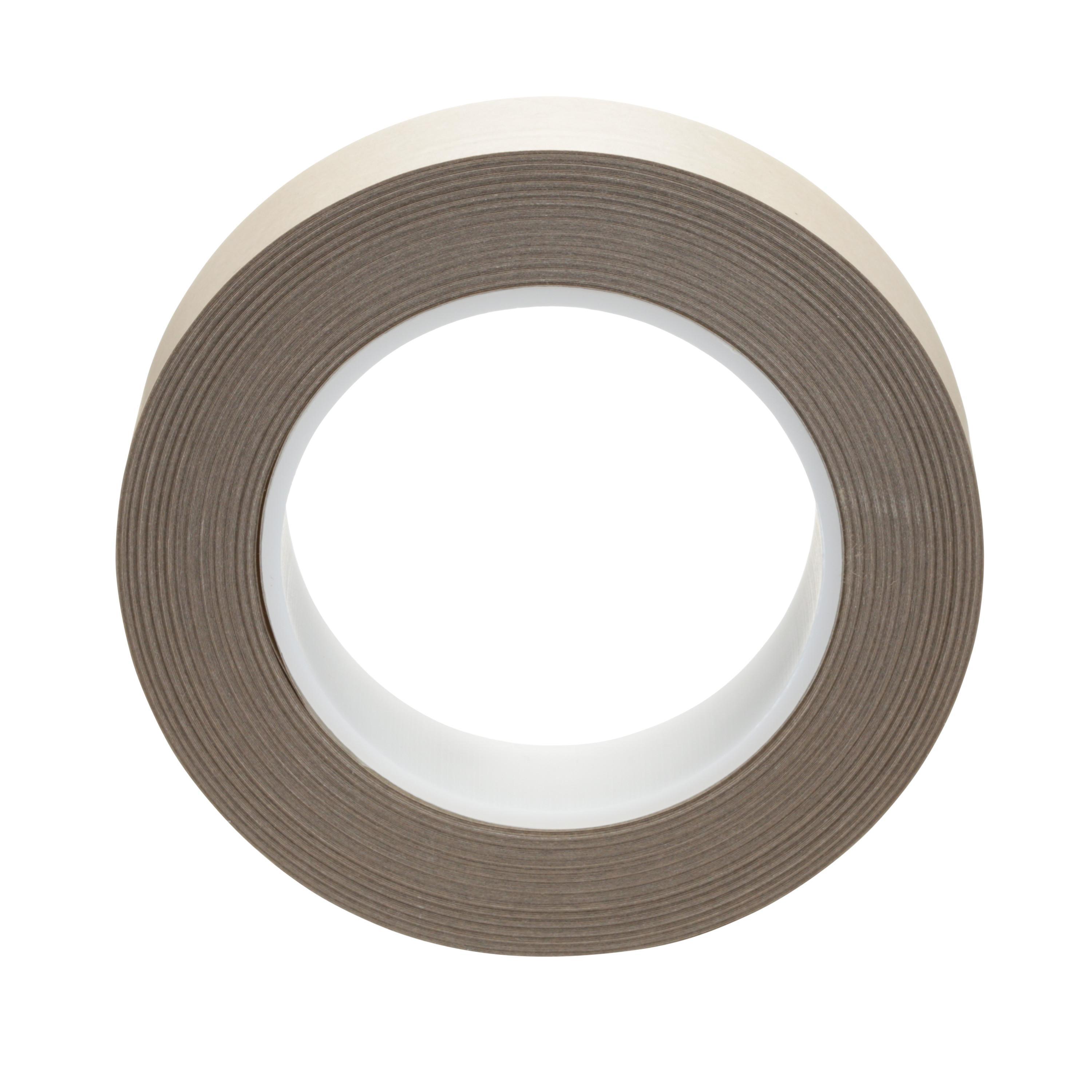

3M™ Electrically Conductive Adhesive Transfer Tape 9713 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive nickel-coated carbon fiber scrim carrier. It has a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This electrically conductive tape can be die cut and offers excellent workability and easy handling. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

3M™, 7000048870, Tape, Electrical Conductive, Series: 9713, 36 yd Length, 1 in Width, 3.5 mil Thickness, Gray, Acrylic Adhesive, 15 in-lb Adhesion Strength, 250 deg F Maximum Operating, -40 deg F Minimum Operating

• Thinner adhesive than 3M XYZ-Axis Electrically Conductive Tape 9712
• Nickel-plated carbon fiber scrim (a more conductive scrim)
• Good contact with both hard and soft surfaces
• Excellent die-cutting and converting capabilities
• Can be applied in strips or die cut to specific shapes and sizes
